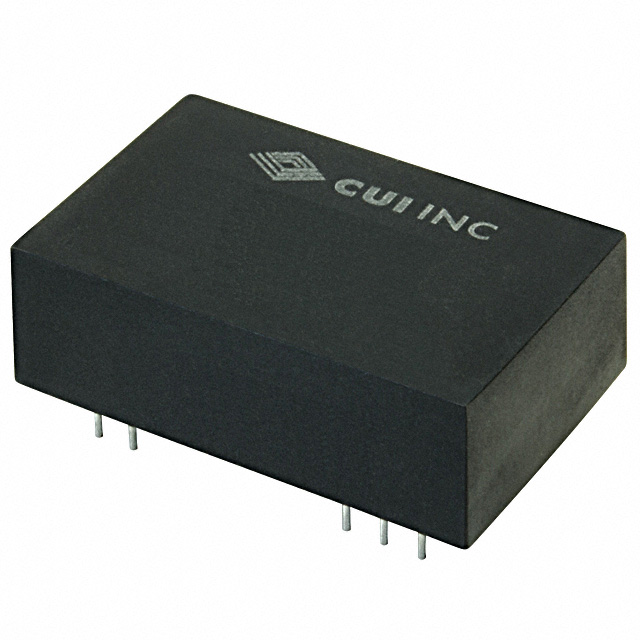

PQB3-D48 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V 3W
| Part | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Voltage - Input (Min) [Min] | Number of Outputs | Type | Power (Watts) | Voltage - Isolation | Current - Output (Max) [Max] | Features | Voltage - Input (Max) [Max] | Applications | Efficiency | Voltage - Output 2 | Standard Number | Approval Agency | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 C | 105 ░C | 24-DIP Module 10 Leads | Through Hole | 36 V | 1 | Isolated Module | 3 W | 1.5 kV | 600 mA | OCP SCP | 75 V | ITE (Commercial) | |||||||
CUI Inc. | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 C | 105 ░C | 24-DIP Module 10 Leads | Through Hole | 36 V | 1 | Isolated Module | 3 W | 1.5 kV | 250 mA | OCP SCP | 75 V | ITE (Commercial) | 83 % | ||||||
CUI Inc. | 15 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 C | 105 ░C | 24-DIP Module 10 Leads | Through Hole | 36 V | 2 | Isolated Module | 3 W | 1.5 kV | OCP SCP | 75 V | ITE (Commercial) | 84 % | -15 V | 55024 55032 | EN | 100 mA | 100 mA | ||
CUI Inc. | 12 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 C | 105 ░C | 24-DIP Module 10 Leads | Through Hole | 36 V | 2 | Isolated Module | 3 W | 1.5 kV | OCP SCP | 75 V | ITE (Commercial) | 83 % | -12 V | 55024 55032 | EN | 125 mA | |||
CUI Inc. | 5 V | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | -40 C | 105 ░C | 24-DIP Module 10 Leads | Through Hole | 36 V | 2 | Isolated Module | 3 W | 1.5 kV | 0.3 A | OCP SCP | 75 V | ITE (Commercial) | -5 V | 55024 55032 | EN |
