SFW22R Series

Catalog

CONN CIC BOTTOM 22POS 1MM R/A

Part	Mounting Type	Pitch	Pitch	Housing Material	Locking Feature	Number of Positions	Connector/Contact Type	Cable End Type	Flat Flex Type	Termination	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Mating Cycles	Housing Color	Contact Finish	Voltage Rating	Material Flammability Rating	Actuator Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Features
Amphenol ICC (FCI) SFW22R-5STE1	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Bottom	Tapered	CIC	Solder	0.3 mm	0.106 in	2.7 mm
Amphenol ICC (FCI) SFW22R-2STE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled		22	Contacts Top	Straight or Tapered	FFC FPC	Kinked Pin	0.3 mm	0.106 in	2.7 mm	20	Brown	Tin	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C
Amphenol ICC (FCI) SFW22R-6STE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Top	Tapered	CIC	Solder	0.3 mm	0.106 in	2.7 mm	10	Brown	Tin	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C	Beige
Amphenol ICC (FCI) SFW22R-1STAE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Bottom	Tapered	FPC	Solder	0.33 mm	0.106 in	2.7 mm	20	Brown	Gold	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C	Brown
Amphenol ICC (FCI) SFW22R-4STE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Top	Notched Tapered	FFC FPC	Solder		0.106 in	2.7 mm	20	Black	Tin	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C	Brown	0.3 mm	0.33 mm	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW22R-2STAE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Top	Notched	FPC	Solder		0.106 in	2.7 mm	20	Brown	Gold	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C	Brown	0.3 mm	0.33 mm

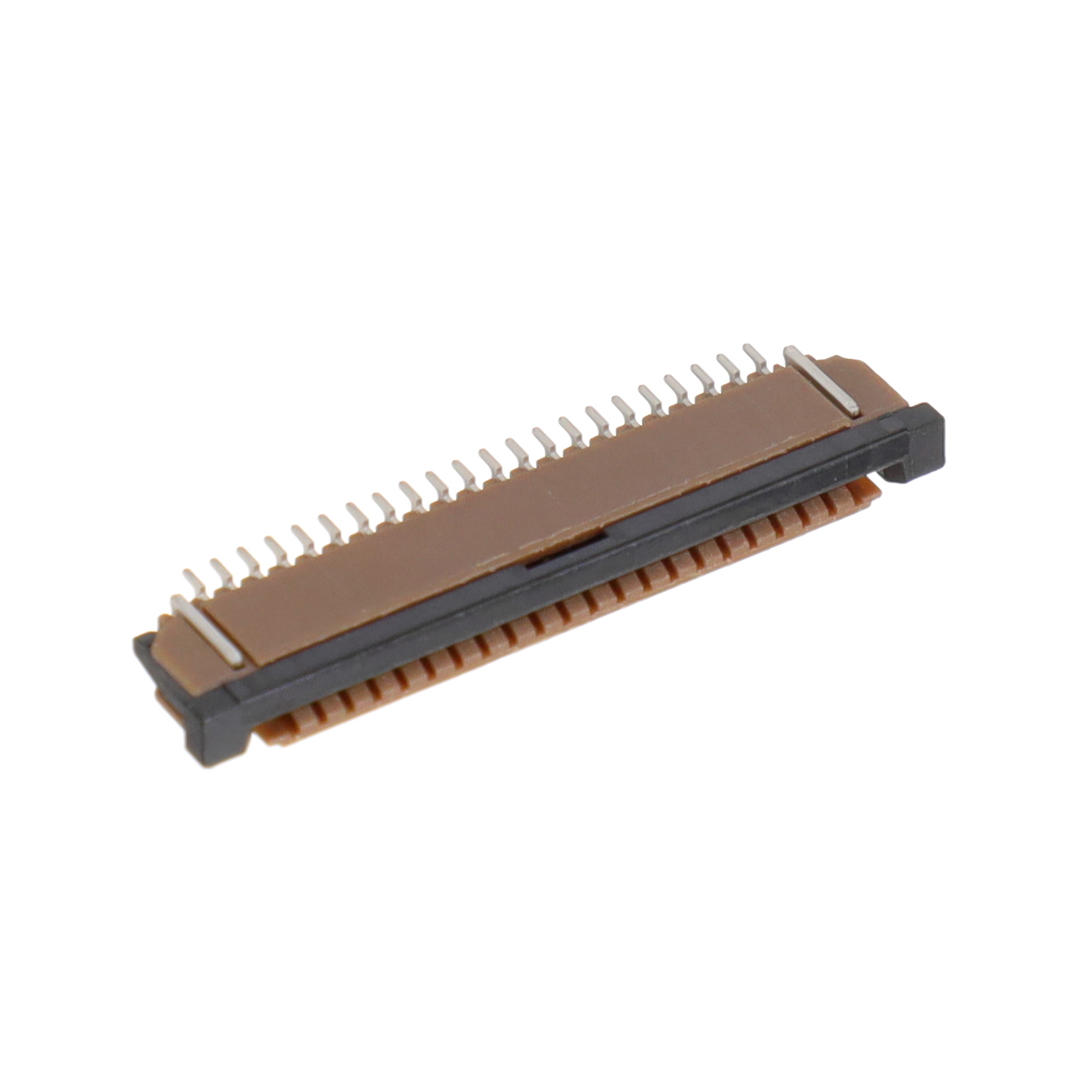

Amphenol ICC (FCI) SFW22R-2STE1	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Top	Straight Tapered	FFC FPC	Solder		0.106 in	2.7 mm		Brown	Tin Alloy		UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze			Black	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW22R-3STE9LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Bottom	Notched	FPC	Solder	0.33 mm	0.106 in	2.7 mm	20	Black	Tin	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C	Brown

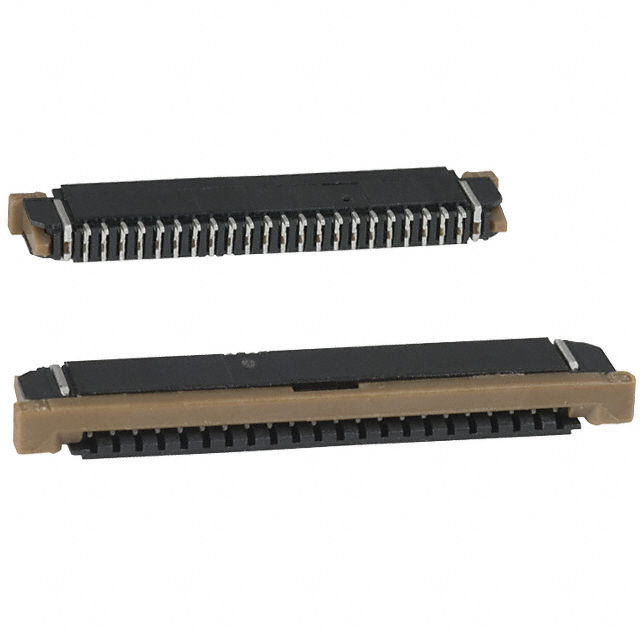

Amphenol ICC (FCI) SFW22R-3STE1	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled	Slide Lock	22	Contacts Bottom	Notched	FFC FPC	Solder		0.106 in	2.7 mm		Black	Tin Alloy		UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze			Brown	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW22R-3STE1LF	Right Angle Surface Mount	1 mm	0.039 in	Polyphenylene Sulfide (PPS) Glass Filled		22	Contacts Bottom	Straight	FFC FPC	Solder	0.3 mm	0.106 in	2.7 mm	20	Black	Tin	100 V	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	-55 C	105 ░C				Solder Retention Zero Insertion Force (ZIF)
