T353 Series

Manufacturer: KEMET

Catalog

TANTALUM CAPACITORS - SOLID LEADED 10V 47UF 20%

Part	Type	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Manufacturer Size Code	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET T353H476M010AT	Conformal Coated	General Purpose	13.2 mm	0.52 in	T353H	10 V	-55 C	125 °C	47 µF	7.6 mm	0.299 in	20 %	1.7 Ohm	Disc Radial	Through Hole	0.2 in	5.08 mm

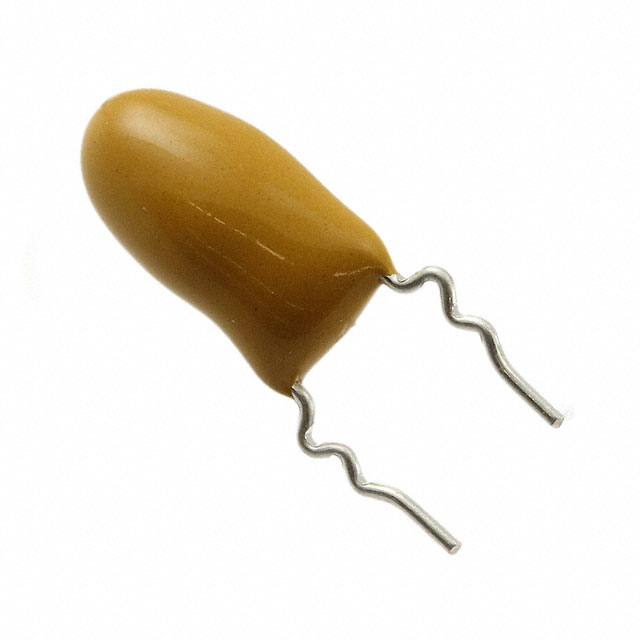

KEMET T353K226K035AT7301	Conformal Coated	General Purpose	16 mm	0.63 in	T353K	35 V	-55 C	125 °C	22 µF	8.9 mm	0.35 in	10 %	1.3 Ohm	Disc Radial	Through Hole	0.2 in	5.08 mm
KEMET T353A684M035AS	Conformal Coated	General Purpose			A	35 V	-55 C	125 °C	0.68 µF	4.5 mm	0.177 "	20 %	10 Ohm	Radial	Through Hole	0.2 in	5.08 mm	0.402 in	10.2 mm
KEMET T353C225M035AT	Conformal Coated	General Purpose	11.2 mm	0.441 in	T353C	35 V	-55 C	125 °C	2.2 µF	5 mm	0.197 in	20 %	5 Ohm	Disc Radial	Through Hole	0.2 in	5.08 mm
KEMET T353G107M003AS7301	Conformal Coated	General Purpose	13 mm	0.512 "	T353G	3 VDC	-55 C	125 °C	100 µF	6.3 mm	0.248 "	20 %		Disc Radial	Through Hole	0.2 in	5.08 mm
KEMET T353K566K016AT7301	Conformal Coated	General Purpose	16 mm	0.63 in	T353K	16 V	-55 C	125 °C	56 µF	8.9 mm	0.35 in	10 %		Disc Radial	Through Hole	0.2 in	5.08 mm
KEMET T353A105K035AS7301	Conformal Coated	General Purpose			T353A	35 V	-55 C	125 °C	1 µF	4.5 mm	0.177 "	10 %	8 Ohm	Disc Radial	Through Hole	0.2 in	5.08 mm	0.402 in	10.2 mm
KEMET T353L336K035AT	Conformal Coated	General Purpose			L	35 V	-55 C	125 °C	33 ÁF	8.9 mm	0.35 in	10 %	1 Ohm	Radial	Through Hole	0.2 in	5.08 mm	0.728 in	18.5 mm
KEMET T353M476K035AT	Conformal Coated	General Purpose			M	35 V	-55 C	125 °C	47 µF	10.2 mm	0.402 in	10 %	800 mOhm	Radial	Through Hole	0.2 in	5.08 mm		0.76 in	19.3 mm
KEMET T353C106M010AS	Conformal Coated	General Purpose	11.2 mm	0.441 in	T353C	10 V	-55 C	125 °C	10 µF	5 mm	0.197 in	20 %	5 Ohm	Disc Radial	Through Hole	0.2 in	5.08 mm
