GBC28S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

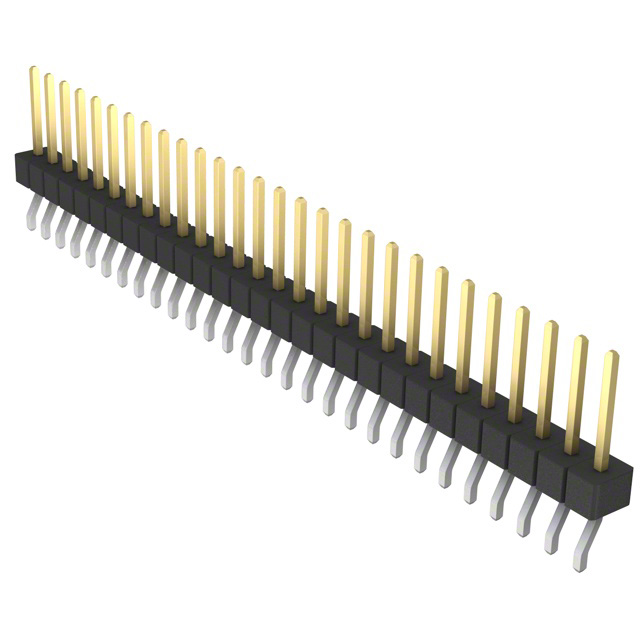

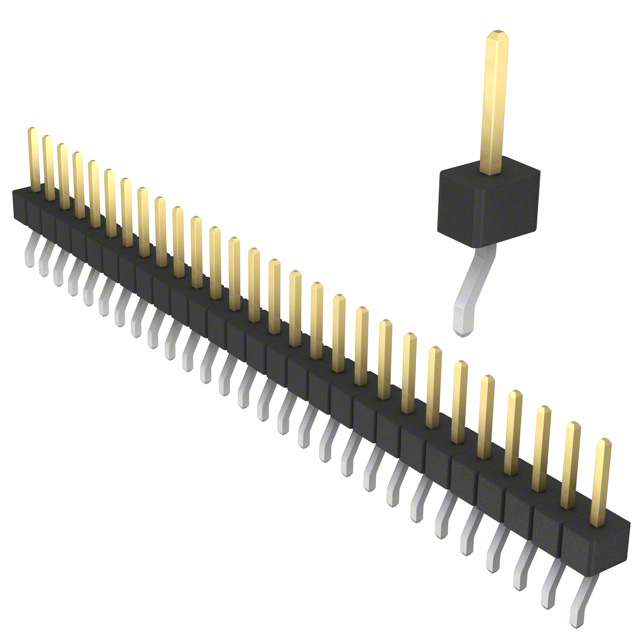

CONN HEADER SMD R/A 28POS 2.54MM
| Part | Connector Type | Mounting Type | Number of Rows | Insulation Height | Insulation Height | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Contact Type | Insulation Material | Material Flammability Rating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Termination | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Current Rating (Amps) | Contact Length - Mating [x] | Contact Length - Mating | Number of Positions Loaded | Style | Fastening Type | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Breakaway Header | Surface Mount Right Angle | 1 | 3.56 mm | 0.14 in | 28 | Phosphor Bronze | 10 çin | 0.25 çm | Black | Male Pin | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Gold | 0.1 in | 2.54 mm | -65 ░C | 150 °C | Square | Solder | Unshrouded | 2.54 µm | 100 µin | Tin | 3 A | 0.23 in | 5.84 mm | All | Board to Board Cable | Push-Pull | |
 Sullins Connector Solutions | Breakaway Header | Surface Mount Right Angle | 1 | 3.56 mm | 0.14 in | 28 | Phosphor Bronze | 10 çin | 0.25 çm | Black | Male Pin | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Gold | 0.1 in | 2.54 mm | -65 ░C | 150 °C | Square | Solder | Unshrouded | 2.54 µm | 100 µin | Tin | 3 A | 0.318 " | All | Board to Board Cable | Push-Pull | 8.08 mm |
