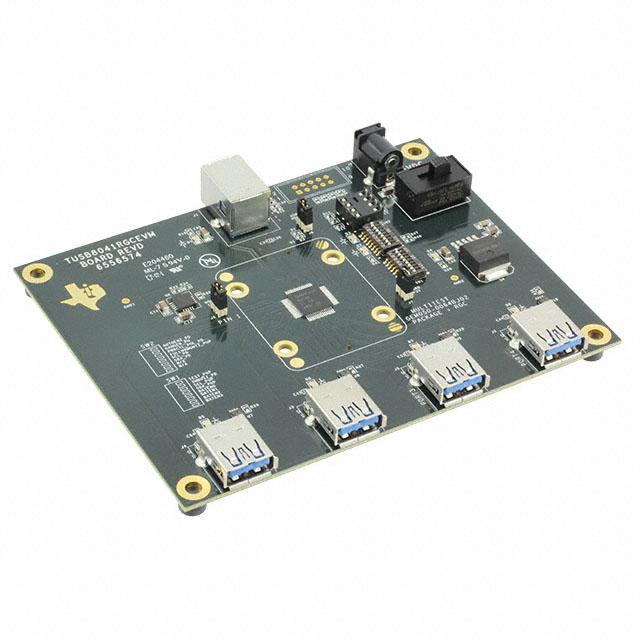

Automotive 4-port SuperSpeed 5-Gbps USB 3.0 hub
Key Features
• Four Port USB 3.1 Gen1 HubUSB 2.0 Hub FeaturesMulti Transaction Translator (MTT) Hub: Four Transaction TranslatorsTwo Asynchronous Endpoint Buffers Per Transaction TranslatorSupports Battery Charging:Supports D+/D- Divider Charging Port (ACP1, ACP2) when the Upstream Port is Unconnected or not ConfiguredSupports Automatic Mode for Transition Between DCP or ACP Modes When the Upstream Port is UnconnectedCDP Mode (Upstream Port Connected)DCP Mode (Upstream Port Unconnected)DCP Mode Complies with Chinese Telecommunications Industry Standard YD/T 1591-2009Supports Operation as a USB 3.1 Gen1 or USB 2.0 Compound DevicePer Port or Ganged Power Switching and Over-Current Notification InputsSupports Four External Downstream PortsSupports Vendor Requests to Read and Write I2C and EEPROM Read at 100 kI2C Master Supports Clock StretchingOTP ROM, Serial EEPROM or I2C/SMBus Slave Interface for Custom Configurations:VID and PIDPort CustomizationsManufacturer and Product Strings (not by OTP ROM)Serial Number (not by OTP ROM)Application Feature Selection Using Pin Selection or EEPROM or I2C/SMBus Slave InterfaceProvides 128-Bit Universally Unique Identifier (UUID)Single Clock Input, 24-MHz Crystal or OscillatorDownstream Ports Configurable to USB2.0 Only64-Pin QFN Package (RGC)Four Port USB 3.1 Gen1 HubUSB 2.0 Hub FeaturesMulti Transaction Translator (MTT) Hub: Four Transaction TranslatorsTwo Asynchronous Endpoint Buffers Per Transaction TranslatorSupports Battery Charging:Supports D+/D- Divider Charging Port (ACP1, ACP2) when the Upstream Port is Unconnected or not ConfiguredSupports Automatic Mode for Transition Between DCP or ACP Modes When the Upstream Port is UnconnectedCDP Mode (Upstream Port Connected)DCP Mode (Upstream Port Unconnected)DCP Mode Complies with Chinese Telecommunications Industry Standard YD/T 1591-2009Supports Operation as a USB 3.1 Gen1 or USB 2.0 Compound DevicePer Port or Ganged Power Switching and Over-Current Notification InputsSupports Four External Downstream PortsSupports Vendor Requests to Read and Write I2C and EEPROM Read at 100 kI2C Master Supports Clock StretchingOTP ROM, Serial EEPROM or I2C/SMBus Slave Interface for Custom Configurations:VID and PIDPort CustomizationsManufacturer and Product Strings (not by OTP ROM)Serial Number (not by OTP ROM)Application Feature Selection Using Pin Selection or EEPROM or I2C/SMBus Slave InterfaceProvides 128-Bit Universally Unique Identifier (UUID)Single Clock Input, 24-MHz Crystal or OscillatorDownstream Ports Configurable to USB2.0 Only64-Pin QFN Package (RGC)
Description
AI
The TUSB8041 is a four-port USB 3.0 hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.
The TUSB8041 supports per port or ganged power switching and over-current protection, and supports battery charging applications.
An individually port power controlled hub switches power on or off to each downstream port as requested by the USB host. Also when an individually port power controlled hub senses an over-current event, only power to the affected downstream port will be switched off.
A ganged hub switches on power to all its downstream ports when power is required to be on for any port. The power to the downstream ports is not switched off unless all ports are in a state that allows power to be removed. Also when a ganged hub senses an over-current event, power to all downstream ports will be switched off.
The TUSB8041 downstream ports provide support for battery charging applications by providing Battery Charging Downstream Port (CDP) handshaking support. It also supports a Dedicated Charging Port (DCP) mode when the upstream port is not connected. The DCP mode supports USB devices which support with the USB Battery Charging and Chinese Telecommunications Industry Standard YD/T 1591-2009. In addition, an automatic mode provides transparent support for BC devices and devices supporting Divider Mode charging solutions when the upstream port unconnected.
The TUSB8041 provides pin strap configuration for some features including battery charging support, and also provides customization though OTP ROM, I2C EEPROM or via an I2C/SMBus slave interface for PID, VID, and custom port and phy configurations. Custom string support is also available when using an I2C EEPROM or the I2C/SMBus slave interface.

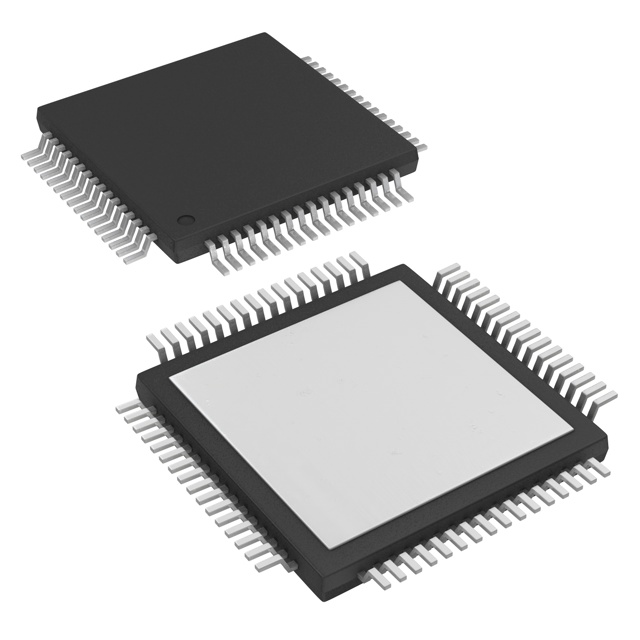

The device is available in a 64-pin RGC package and is offered in a commercial version (TUSB8041) for operation over the temperature range of 0°C to 70°C, and in an industrial version (TUSB8041I) for operation over the temperature range of -40°C to 85°C.
The TUSB8041 is a four-port USB 3.0 hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.
The TUSB8041 supports per port or ganged power switching and over-current protection, and supports battery charging applications.
An individually port power controlled hub switches power on or off to each downstream port as requested by the USB host. Also when an individually port power controlled hub senses an over-current event, only power to the affected downstream port will be switched off.
A ganged hub switches on power to all its downstream ports when power is required to be on for any port. The power to the downstream ports is not switched off unless all ports are in a state that allows power to be removed. Also when a ganged hub senses an over-current event, power to all downstream ports will be switched off.
The TUSB8041 downstream ports provide support for battery charging applications by providing Battery Charging Downstream Port (CDP) handshaking support. It also supports a Dedicated Charging Port (DCP) mode when the upstream port is not connected. The DCP mode supports USB devices which support with the USB Battery Charging and Chinese Telecommunications Industry Standard YD/T 1591-2009. In addition, an automatic mode provides transparent support for BC devices and devices supporting Divider Mode charging solutions when the upstream port unconnected.
The TUSB8041 provides pin strap configuration for some features including battery charging support, and also provides customization though OTP ROM, I2C EEPROM or via an I2C/SMBus slave interface for PID, VID, and custom port and phy configurations. Custom string support is also available when using an I2C EEPROM or the I2C/SMBus slave interface.
The device is available in a 64-pin RGC package and is offered in a commercial version (TUSB8041) for operation over the temperature range of 0°C to 70°C, and in an industrial version (TUSB8041I) for operation over the temperature range of -40°C to 85°C.
