9W2TP48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

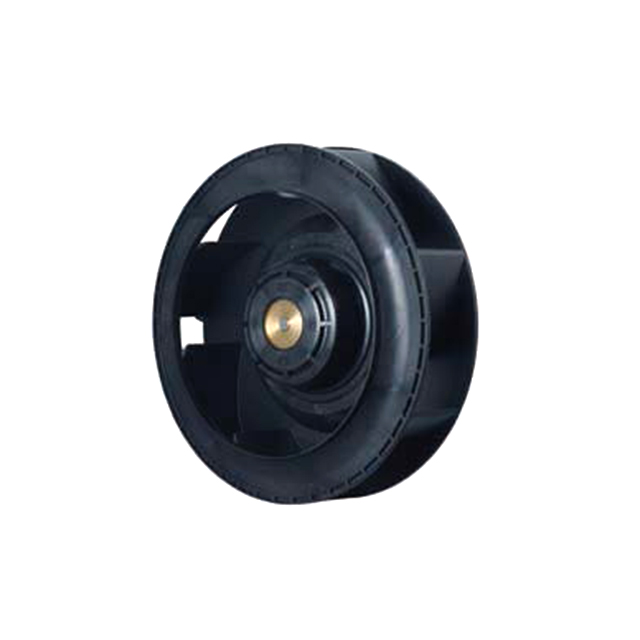

DC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 48V 36V TO 72V 692CFM 73.5DB 221 X 71MM HIGH AIR FLOW
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Voltage - Rated | Power (Watts) | Weight | Weight | RPM | Air Flow | Air Flow | Approval Agency | Termination | Noise | Ingress Protection | Width | Fan Type | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Bearing Type | Features | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 2.3 A | 40000 Hrs | Aluminum | Plastic | 72 VDC | 36 VDC | 48 VDC | 110.4 W | 2.6 lbs | 1.2 kg | 3400 RPM | 19.4 m³/min | 693 CFM | cURus TUV | 4 Wire Leads | 73.5 dB(A) | IP56 - Dust Protected Water Resistant | 71 mm | Motorized Impellers | 660 Pa | 2.65 in H2O | 70 °C | -25 °C | Ball | PWM Control Speed Sensor (Tach) | Round | 221 mm |
