684S13W Series
Manufacturer: NorComp Inc.
Beta
⌘K

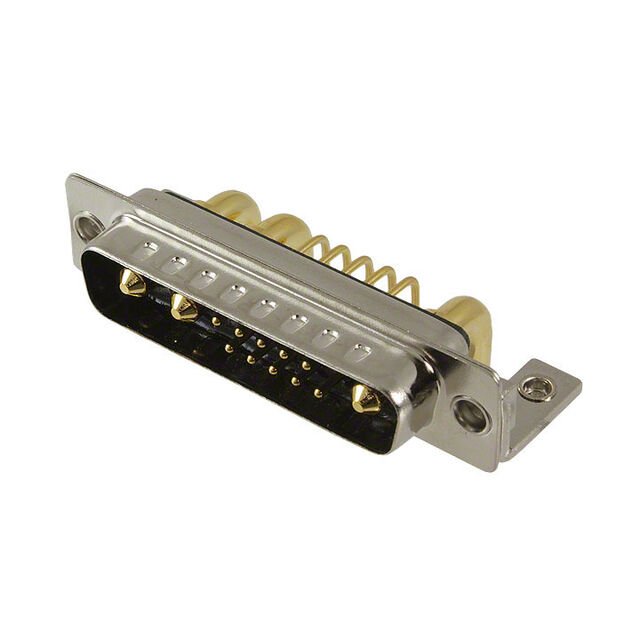

COMBINATION LAYOUT D SUB CONNECTOR, 40 AMP, SEAL-D 684S SERIES, DB-13W3, PLUG, 13 CONTACTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Number of Rows [custom] | Material Flammability Rating | Contact Finish | Features | Connector Style | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Positions [custom] | Number of Positions [custom] | Contact Type | Contact Finish Thickness | Shell Material, Finish | Termination | Flange Feature | Flange Feature | Ingress Protection | Connector Type | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) | Black | 2 | UL94 V-0 | Gold | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | 5 A 40 A | 3 | 13C3 13W3 | 10 | 3 | Signal and Power | Flash | Nickel Plated Steel | Solder | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Plug Male Pins | Board Edge Right Angle Through Hole | ||||||
 NorComp Inc. | -55 C | 125 °C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 | UL94 V-0 | Gold | Board Lock Grounding Indents Mounting Brackets | Combo D-Sub | 5 A 40 A | Signal and Power | Flash | Nickel Plated Steel | Solder | Housing/Shell | 4-40 | IP67 - Dust Tight Waterproof | Plug Male Pins | Board Edge Right Angle Through Hole | 4 | C DC | 13W6 | 13 | 9.4 mm | 0.37 in |
