292172 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER SMD 8POS 2MM
| Part | Fastening Type | Number of Positions | Contact Shape | Insulation Material | Contact Material | Contact Finish - Post | Current Rating (Amps) | Applications | Number of Positions Loaded | Contact Type | Mounting Type | Shrouding | Style | Number of Rows | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Connector Type | Insulation Color | Material Flammability Rating | Termination | Pitch - Mating [x] | Pitch - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

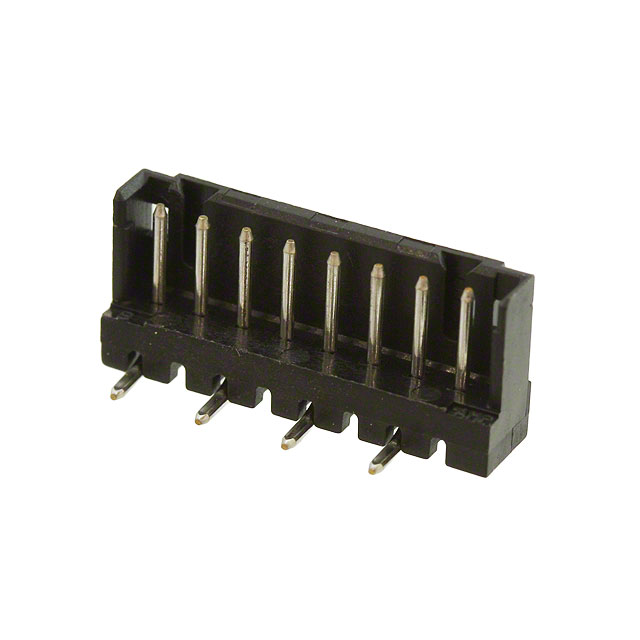

TE Connectivity Raychem Cable Protection | Detent Lock | 8 | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Natural | UL94 V-0 | Solder | 0.079 in | 2 mm |
 TE Connectivity Raychem Cable Protection | Detent Lock | 8 | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Black | UL94 V-0 | Solder | 0.079 in | 2 mm |

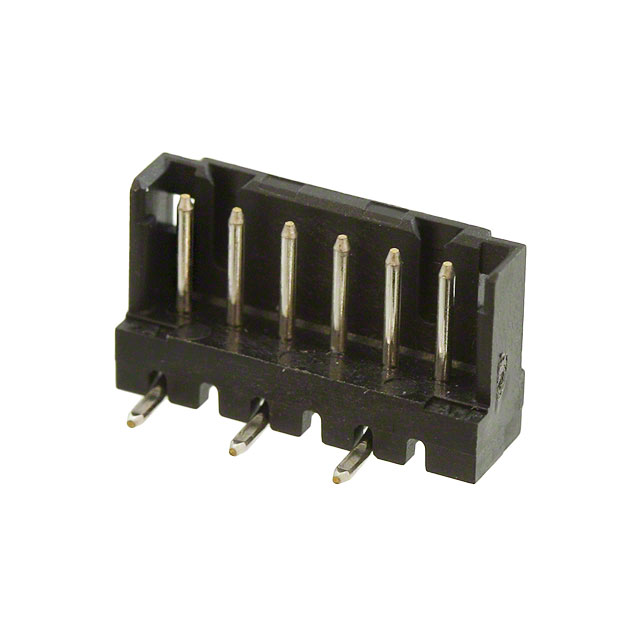

 TE Connectivity Raychem Cable Protection | Detent Lock | 6 | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Black | UL94 V-0 | Solder | 0.079 in | 2 mm |
 TE Connectivity Raychem Cable Protection | Detent Lock | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Black | UL94 V-0 | Solder | 0.079 in | 2 mm | |
TE Connectivity Raychem Cable Protection | Detent Lock | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Natural | UL94 V-0 | Solder | 0.079 in | 2 mm | |

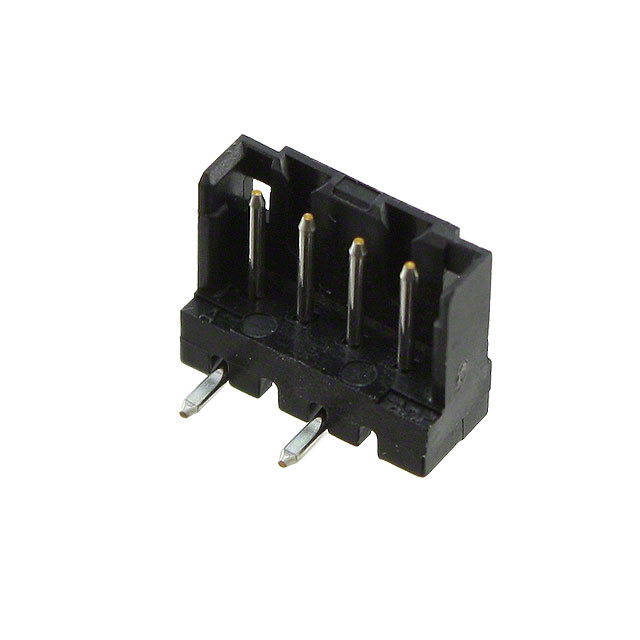

 TE Connectivity Raychem Cable Protection | Detent Lock | 4 | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Black | UL94 V-0 | Solder | 0.079 in | 2 mm |
TE Connectivity Raychem Cable Protection | Detent Lock | 4 | Circular | Glass Filled Nylon 6T Polyamide (PA6T) | Brass | Tin | Varies by Wire Gauge | General Purpose | All | Male Pin | Surface Mount | Shrouded - 3 Wall | Board to Cable/Wire | 1 | 125 VAC | 0.177 in | 4.5 mm | Header | Natural | UL94 V-0 | Solder | 0.079 in | 2 mm |
