ECQ-P6332 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

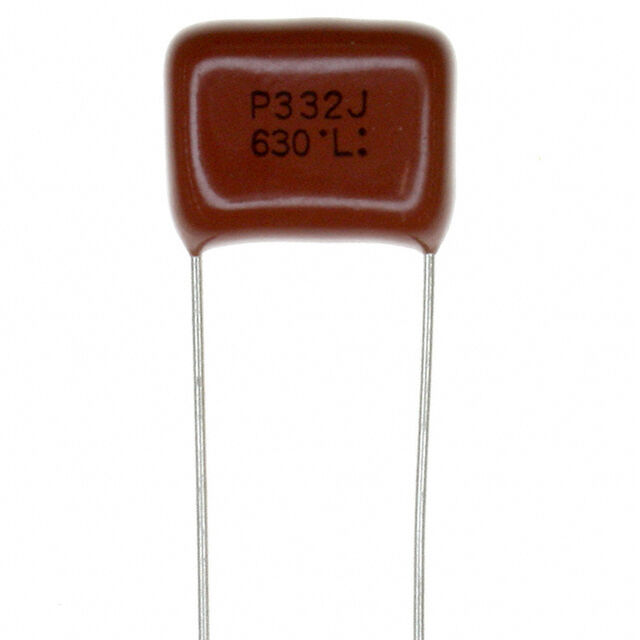

CAP FILM 3300PF 5% 630VDC RADIAL
| Part | Applications | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Tolerance | Dielectric Material | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Termination | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | DV/DT High Frequency High Pulse Switching | 0.394 in | 10 mm | -40 °C | 105 ░C | Radial | 5 % | Polypropylene (PP) | 0.453 " | 11.5 mm | PC Pins | 0.571 in | 14.5 mm | 6 mm | 0.236 in | Through Hole | 3300 pF |
