PFB1212 Series

Catalog

FAN AXIAL 120X38MM 12VDC WIRE

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Weight	Weight	Approval Agency	Termination	Fan Type	Power (Watts)	RPM	Width [y]	Noise	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Features
Delta Electronics PFB1212EHE	1.6 A	8 V	13.2 VDC	Plastic	70000 Hrs	Plastic	0.838 lb	380.11 g	CE CSA UL VDE	2 Wire Leads	Tubeaxial	19.2 W	4000 RPM	38 mm	59 dB(A)	Ball	12 VDC	187 Pa	0.751 in H2O	5.08 mł/min	181.3 CFM	120 mm	120 mm	-10 °C	60 °C

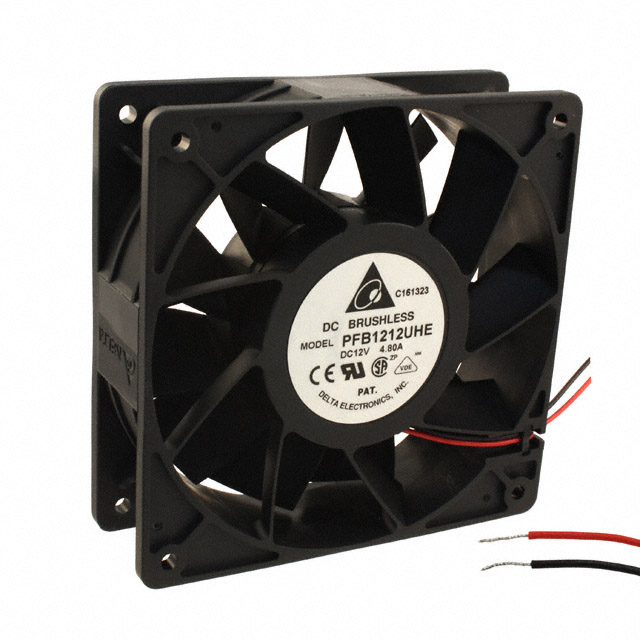

Delta Electronics PFB1212UHE	4 A	8 V	13.2 VDC	Plastic	70000 Hrs	Plastic	0.838 lb	380.11 g	CE CSA UL VDE	2 Wire Leads	Tubeaxial	48 W	5500 RPM	38 mm	66.5 dB(A)	Ball	12 VDC	351.7 Pa	1.412 in H2O	7.08 mł/min	252.9 CFM	120 mm	120 mm	-10 °C	60 °C

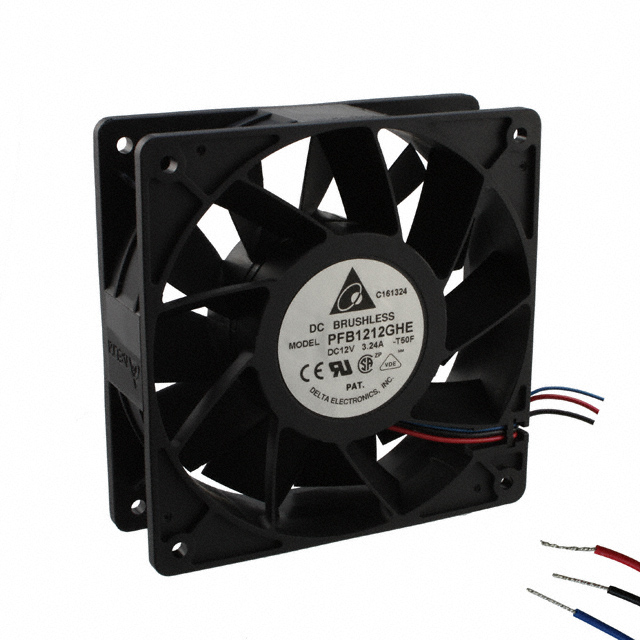

Delta Electronics PFB1212GHE-T50F	2.7 A	8 V	13.2 VDC	Plastic	70000 Hrs	Plastic	0.838 lb	380.11 g	CE CSA UL VDE	3 Wire Leads	Tubeaxial	32.4 W	4800 RPM	38 mm	64 dB(A)	Ball	12 VDC	267.8 Pa	1.075 in H2O	6.1 m³/min	217.8 CFM	120 mm	120 mm	-10 °C	60 °C	IP55 - Dust Protected Water Resistant	Locked Rotor Protection Speed Sensor (Tach)
