134-1000 Series

Manufacturer: Cinch Connectivity Solutions Johnson

Catalog

ADAPTER ASSEMBLY, 2.4MM MALE TO

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles (Min)	Mating Cycles (Max)	Body Material	Dielectric Material	Convert From (Adapter End)	Style	Convert To (Adapter End) Precision	Convert To (Adapter End)	Impedance	Adapter Type	Frequency - Max	Conversion Type	Adapter Series	Adapter Series Size	Mounting Type	Center Contact Plating	Center Gender	Fastening Type	Convert To (Adapter End) Type	Convert To (Adapter End) Model	Convert To (Adapter End) Size	Body Finish	Convert To (Adapter End) Gender	Insertion Loss	Mating Cycles	Convert From (Adapter End) Plug Size	Convert From (Adapter End) Type	Convert From (Adapter End) Jack Size

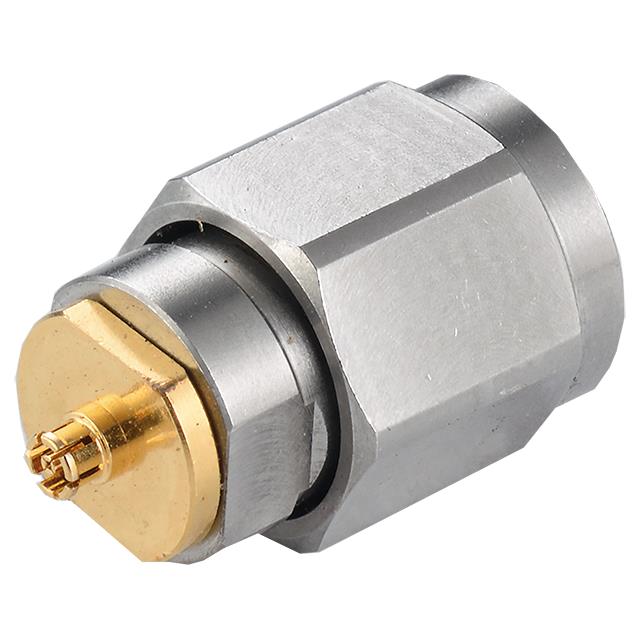

Cinch Connectivity Solutions Johnson 134-1000-037	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	2.4 mm	(APC-2.4 OS-50) Plug Male Pin	50 Ohm	Plug to Jack	50 GHz	Between Series	SMP3	2.4 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded

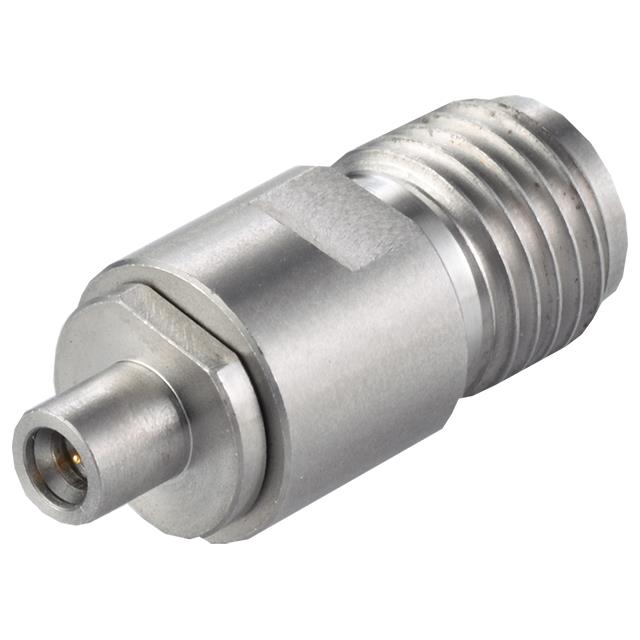

Cinch Connectivity Solutions Johnson 134-1000-040	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Plug	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Male	Snap-On Threaded	Male Pin Plug	OS-2.9	2.92 mm

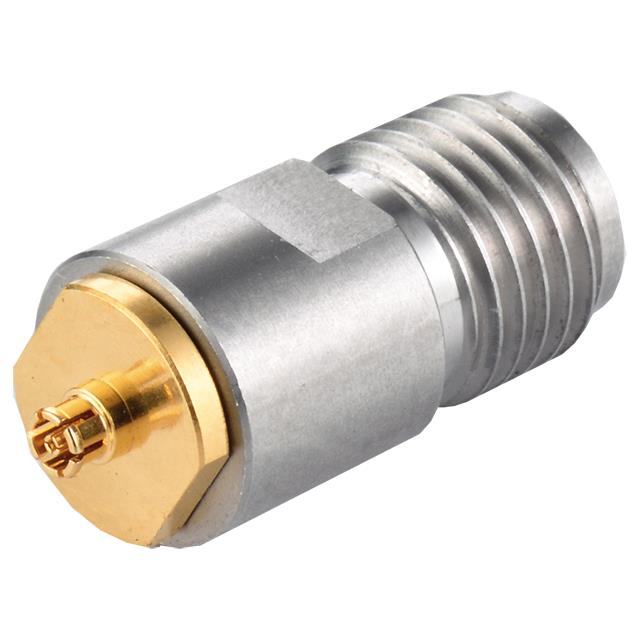

Cinch Connectivity Solutions Johnson 134-1000-043	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight		Female Socket Jack	50 Ohm	Jack to Jack	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Female	Snap-On Threaded	Jack	OS-2.9	2.92 mm	Gold	Female Socket

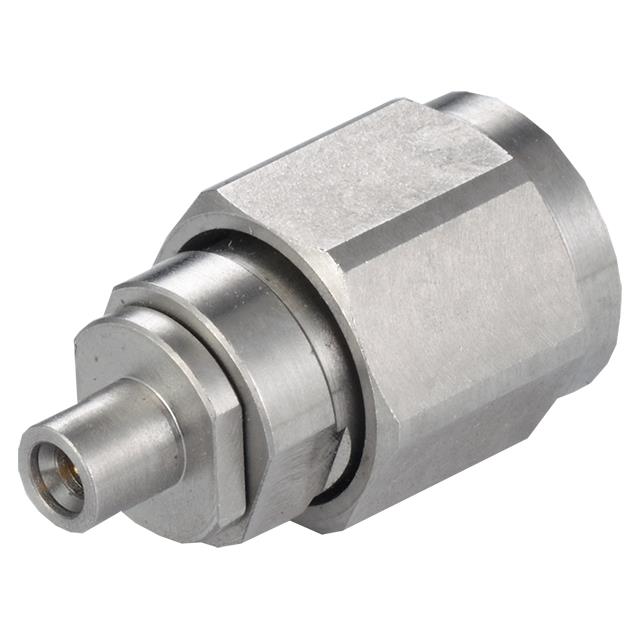

Cinch Connectivity Solutions Johnson 134-1000-036	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight	2.4 mm	(APC-2.4 OS-50) Plug Male Pin	50 Ohm	Plug to Plug	50 GHz	Between Series	SMP3	2.4 mm	Free Hanging (In-Line)	Gold	Male	Snap-On Threaded

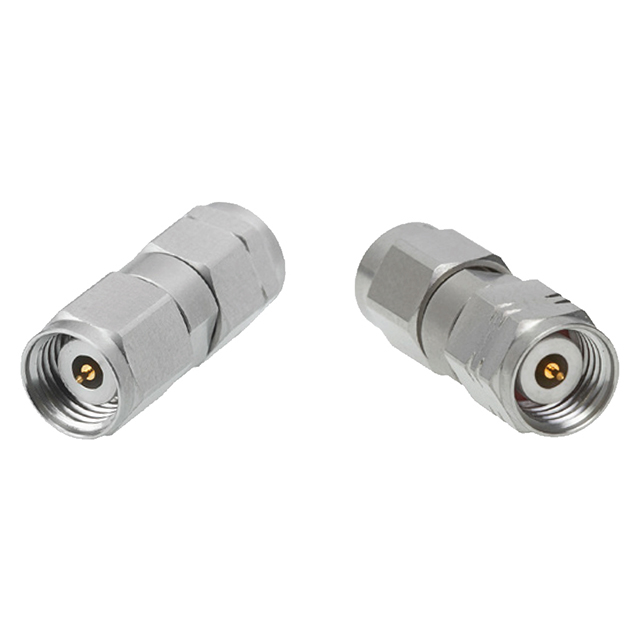

Cinch Connectivity Solutions Johnson 134-1000-023	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Plug	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Male	Threaded	Male Pin Plug	OS-2.9	2.92 mm			0.6 dB	500 cycles	1.85 mm	Male Pin

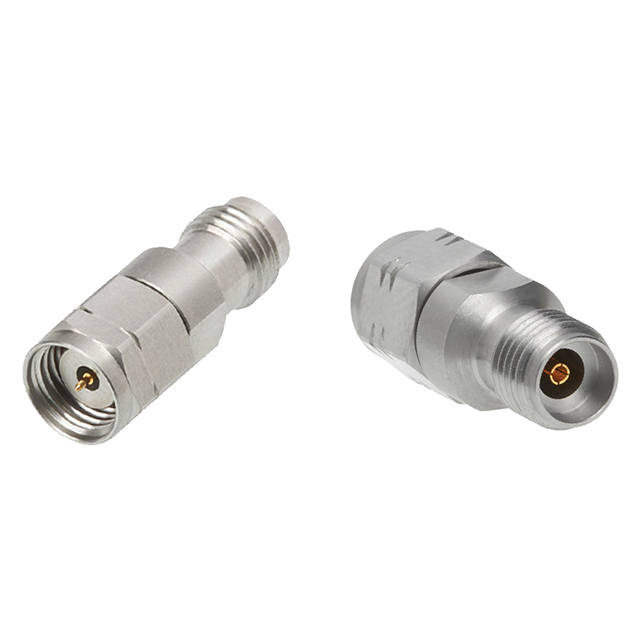

Cinch Connectivity Solutions Johnson 134-1000-022	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight		Female Socket Jack	50 Ohm	Plug to Jack	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Threaded	Jack	OS-2.9	2.92 mm		Female Socket	0.6 dB	500 cycles	1.85 mm	Male Pin

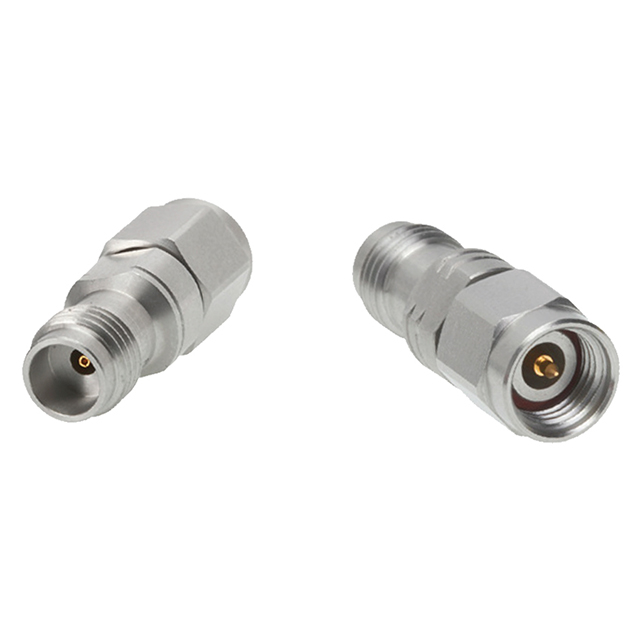

Cinch Connectivity Solutions Johnson 134-1000-021	Beryllium Copper	-65 °C	165 °C			Stainless Steel	Polyetherimide (PEI)		Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Jack	46.5 GHz	Between Series		1.85 mm 2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Threaded	Male Pin Plug	OS-2.9	2.92 mm			0.6 dB	500 cycles		Female Socket	1.85 mm

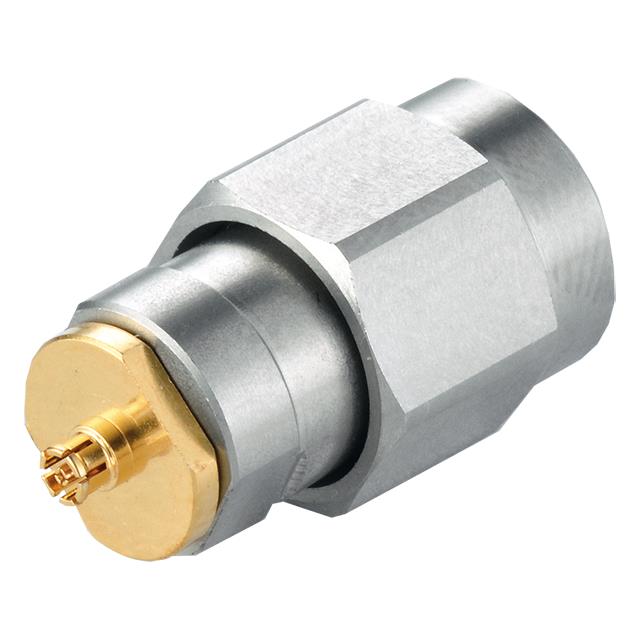

Cinch Connectivity Solutions Johnson 134-1000-041	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	2.92 mm	(OS-2.9) Plug Male Pin Plug	50 Ohm	Plug to Jack	40 Gbps	Between Series	SMP3	2.92 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded	Male Pin Plug	OS-2.9	2.92 mm	Gold
Cinch Connectivity Solutions Johnson 134-1000-033	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Beryllium Copper Stainless Steel	Polyetherimide (PEI)	Female Socket SMP3 Jack	Straight	1.85 mm	Male Pin Plug	50 Ohm	Plug to Jack	67 GHz	Between Series	SMP3	1.85 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded				Gold

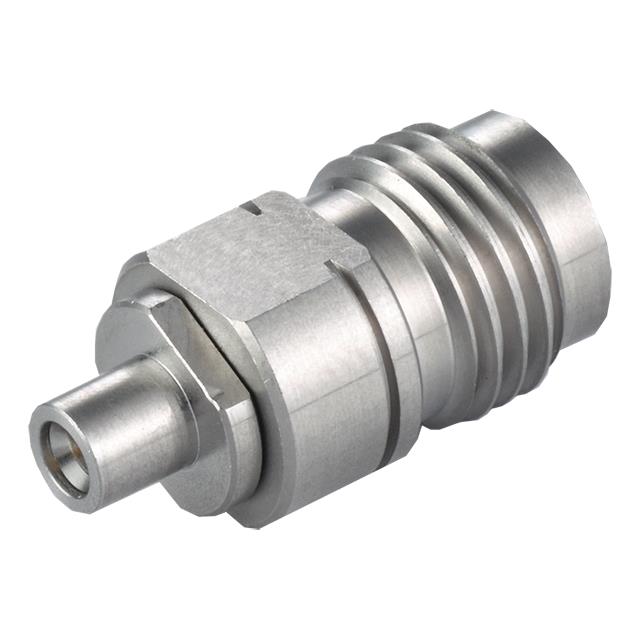

Cinch Connectivity Solutions Johnson 134-1000-034	Beryllium Copper	-65 °C	165 °C	100 cycles	500 cycles	Stainless Steel	Polyetherimide (PEI)	Male Pin SMP3 Plug	Straight			50 Ohm	Plug to Jack	67 GHz	Between Series	SMP3	1.85 mm	Free Hanging (In-Line)	Gold	Female Male	Snap-On Threaded	1.85mm Jack				Female Socket
