SP6201 Series

Catalog

IC REG LINEAR 5V 200MA SOT23-5

Part	Voltage - Input (Max) [Max]	Output Configuration	Voltage Dropout (Max)	Control Features	Supplier Device Package	Package / Case	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Protection Features	PSRR	Voltage - Output (Min/Fixed)	Mounting Type	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Output Type
MaxLinear, Inc. SP6201EM5-L-5-0/TR	6 V	Positive	0.5 V	Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	5 V	Surface Mount
MaxLinear, Inc. SP6201EM5-L-3-3/MTR	6 V	Positive	0.5 V	Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	3.3 V	Surface Mount	1 µA	400 µA
MaxLinear, Inc. SP6201EM5-L-1-8/TR	6 V	Positive		Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	1.8 V	Surface Mount	45 µA	500 µA
MaxLinear, Inc. SP6201EM5-L-2-5	6 V	Positive		Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	2.5 V	Surface Mount

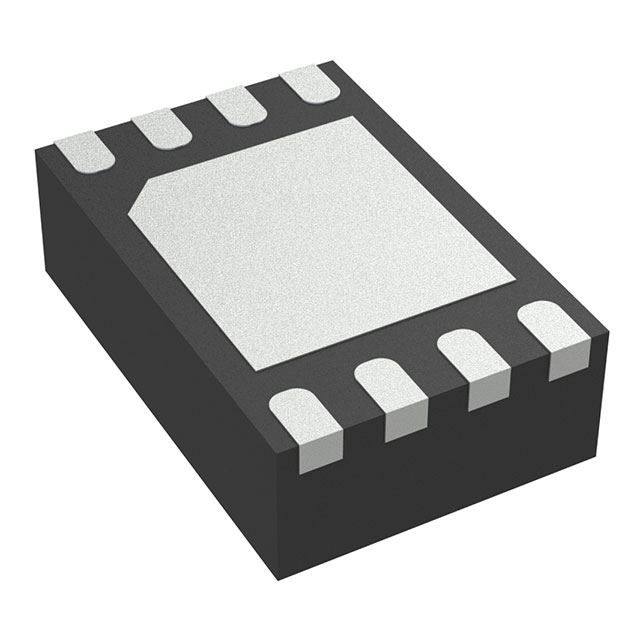

MaxLinear, Inc. SP6201ER-L-1-8/TR	6 V	Positive		Enable	8-DFN (2x3)	8-VFDFN Exposed Pad	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	1.8 V	Surface Mount	1 µA	500 µA
MaxLinear, Inc. SP6201EM5-L-2-5/TR	6 V	Positive		Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	2.5 V	Surface Mount
MaxLinear, Inc. SP6201EM5-G-3-3/TR	6 V	Positive	0.5 V	Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	3.3 V	Surface Mount
MaxLinear, Inc. SP6201EM5-L	6 V	Positive	0.5 V	Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	2.5 V	Surface Mount			Adjustable
MaxLinear, Inc. SP6201EM5-L-1-8	6 V	Positive		Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	1.8 V	Surface Mount	45 µA	500 µA
MaxLinear, Inc. SP6201EM5-L/TR	6 V	Positive	0.5 V	Enable	SOT-23-5	SC-74A SOT-753	0.2 A	125 °C	-40 C	1	Over Current Over Temperature	40 dB 78 dB	2.5 V	Surface Mount			Adjustable
