887-052 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Number of Rows [custom]	Pitch	Pitch	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Gender	Contact Finish	Termination	Card Type	Contact Material	Mounting Type	Flange Feature	Read Out	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 887-052-544-807	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Through Hole	M3 Threaded Insert Top Mount Opening	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 887-052-524-803	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Through Hole	Floating Bobbin Top Mount Opening	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
EDAC Inc. 887-052-541-208	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 887-052-540-804	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Through Hole		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm

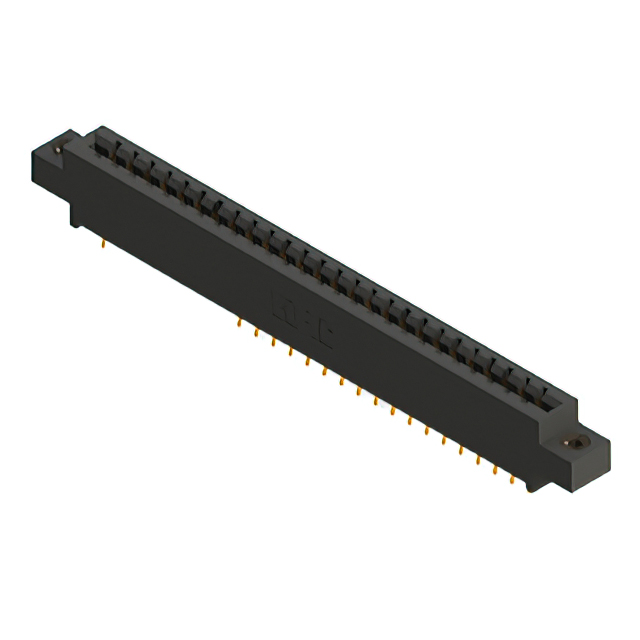

EDAC Inc. 887-052-556-808	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Extender
EDAC Inc. 887-052-520-802	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Through Hole		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	3.25 mm

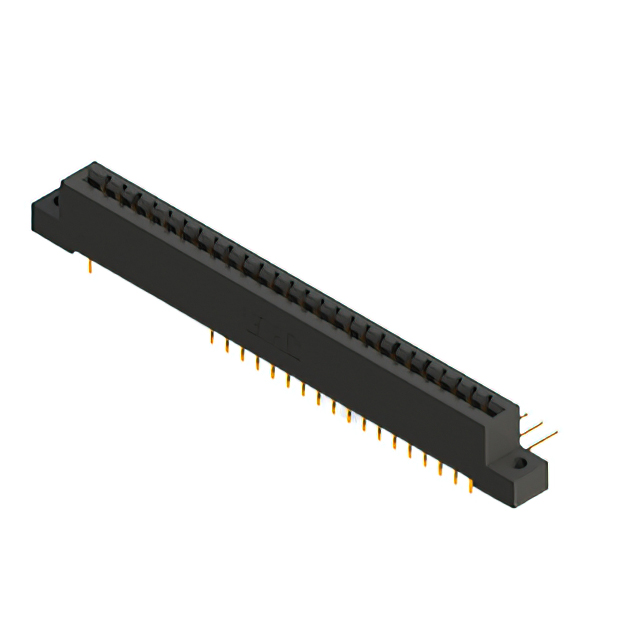

EDAC Inc. 887-052-559-204	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm
EDAC Inc. 887-052-520-804	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Through Hole		Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm

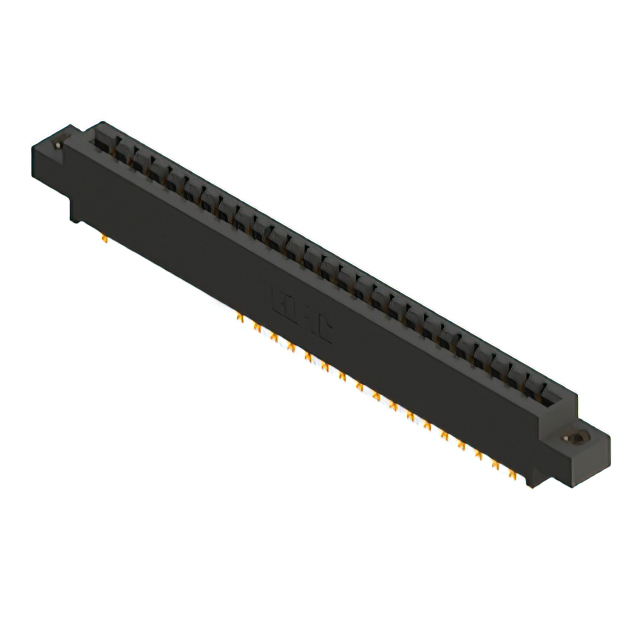

EDAC Inc. 887-052-555-807	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Board Edge Straddle Mount	M3 Threaded Insert Top Mount Opening	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Extender
EDAC Inc. 887-052-523-203	2	Polyphenylene Sulfide (PPS)	52	2	3.96 mm	0.156 in	Black	125 °C	-40 C	26	0.25 Ám	10 Áin	Cantilever	Female	Gold	Solder	Non Specified - Dual Edge	Copper Alloy	Through Hole	Floating Bobbin Flush Mount	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
