FI-S20 Series
Manufacturer: JAE Electronics
Beta
⌘K

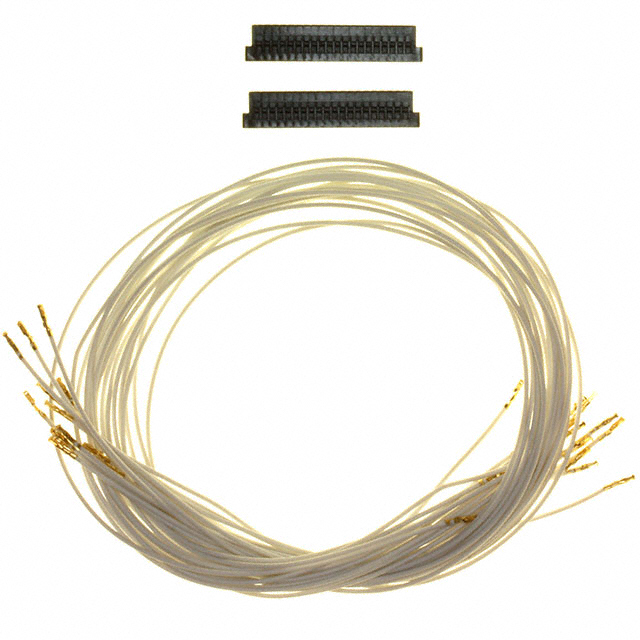

CABLE ASSY FI-S 20POS 300MM
| Part | Contact Finish | Length [x] | Length [x] | Length [x] | Cable Termination | Color | Features | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Number of Positions | Connector Type | Number of Rows | Mounting Type | Number of Positions Loaded | Termination | Insulation Height | Insulation Height | Contact Shape | Contact Material | Contact Finish - Mating | Contact Finish - Post | Insulation Color | Material Flammability Rating | Style | Contact Type | Voltage Rating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Note | Pitch | Pitch | Insulation Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Gold | 0.984 ft | 300 mm | 11.81 in | Crimp | Gray Individual | Assembly Kit | 3.94 µin | 0.1 Ám | 0.049 in | 1.25 mm | 20 | Plug to Plug | 1 | ||||||||||||||||||||||||||
 JAE Electronics | ||||||||||||||||||||||||||||||||||||||||

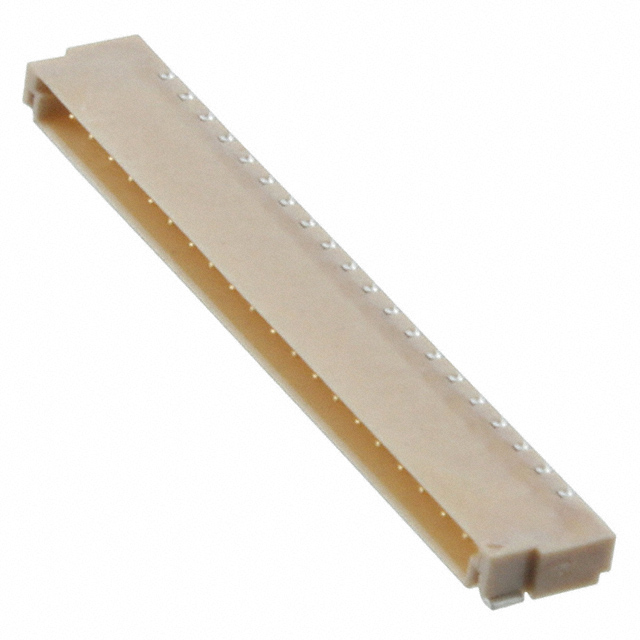

 JAE Electronics | Solder Retention | 20 | Receptacle | 1 | Right Angle Surface Mount | All | Solder | 1.8 mm | 0.071 in | Square | Copper Alloy | Gold | Tin Tin-Alloy | Beige | UL94 V-0 | Board to Cable/Wire | Male Pin | 200 V | Friction Lock | 80 °C | -40 C | Shrouded - 4 Wall | 1 A | 0.049 in | 1.25 mm | |||||||||||||||
JAE Electronics | ||||||||||||||||||||||||||||||||||||||||

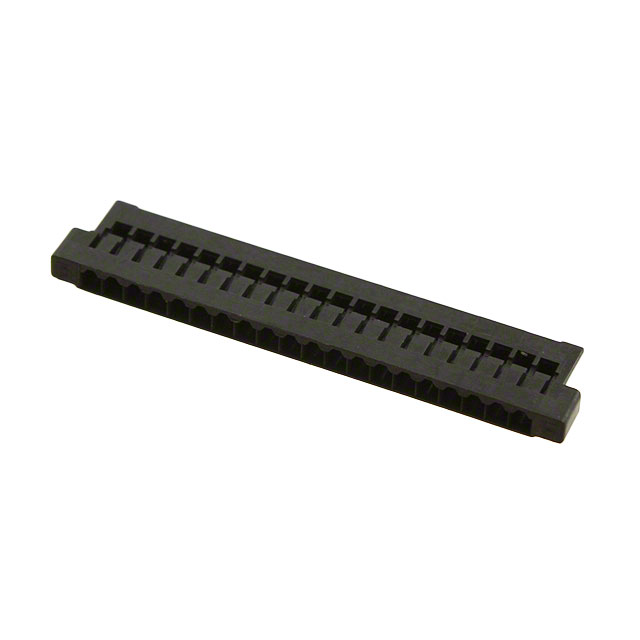

 JAE Electronics | Black | 20 | Plug | 1 | Free Hanging (In-Line) | Female Socket | Friction Lock | Contacts Not Included | 0.049 in | 1.25 mm | Glass Filled Nylon 6/6 Polyamide (PA66) | Crimp |
