NPPN282 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 56POS 0.079 GOLD SMD

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Shape	Number of Positions Loaded	Insulation Color	Connector Type	Contact Finish - Post	Contact Type	Number of Rows [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Mounting Type	Number of Positions	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Insulation Height	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Post

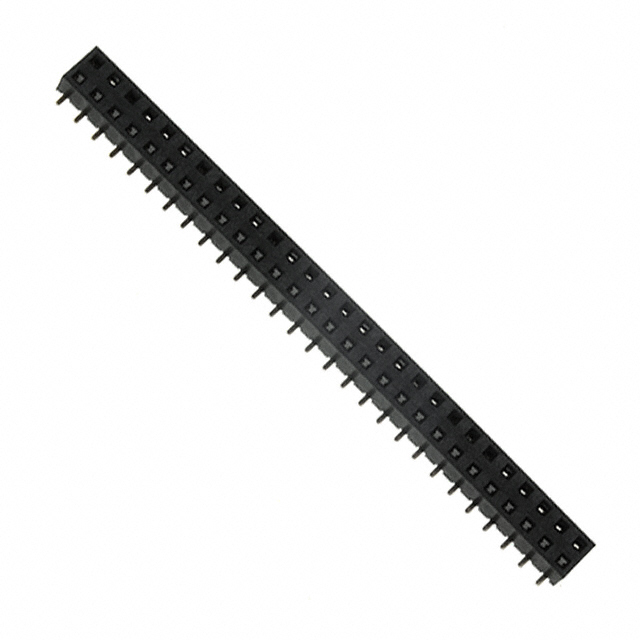

Sullins Connector Solutions NPPN282GFNP-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header Top or Bottom Entry	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0	Board Guide	Surface Mount	56	2 A	0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in
Sullins Connector Solutions NPPN282FFKS-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0		Surface Mount	56	2 A	0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in	4.4 mm	0.173 in
Sullins Connector Solutions NPPN282AFEN-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0		Through Hole	56		0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in		4.3 mm	0.169 "	0.11 in	2.79 mm
Sullins Connector Solutions NPPN282AFCN-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0		Through Hole	56		0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in		4.3 mm	0.169 "		2.4 mm	0.094 in
Sullins Connector Solutions NPPN282FFKP-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0	Board Guide	Surface Mount	56	2 A	0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in	4.4 mm	0.173 in

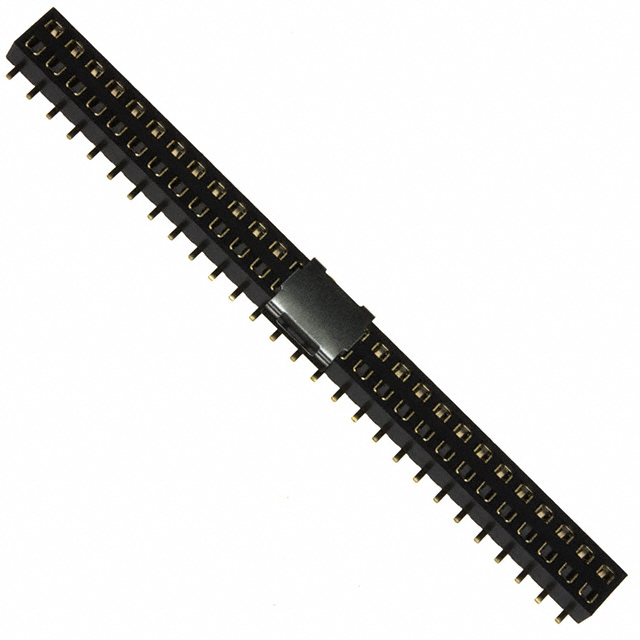

Sullins Connector Solutions NPPN282GHNP-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header Bottom Entry	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0	Board Guide	Surface Mount	56		0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in

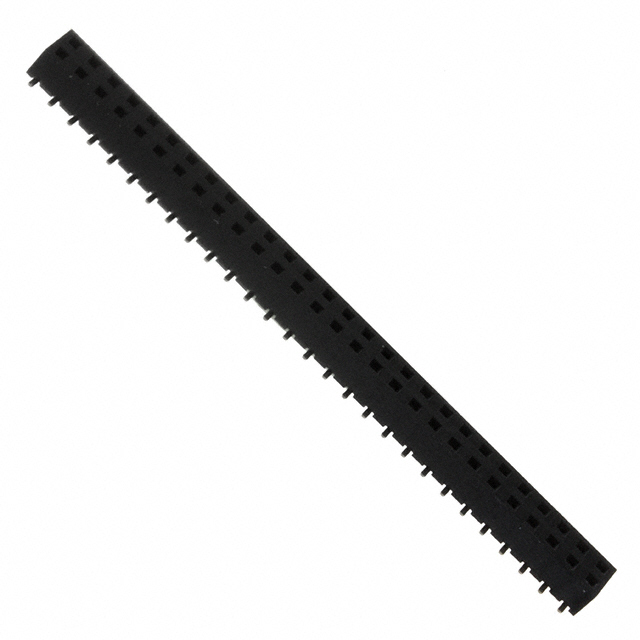

Sullins Connector Solutions NPPN282GFNS-RC	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Square	All	Black	Header Top or Bottom Entry	Gold	Female Socket	2	Solder	-40 C	105 ░C	UL94 V-0		Surface Mount	56	2 A	0.079 "	2 mm	Flash	Push-Pull	Gold	2 mm	0.079 in
