430300 Series
Manufacturer: Curtis Industries
Beta
⌘K

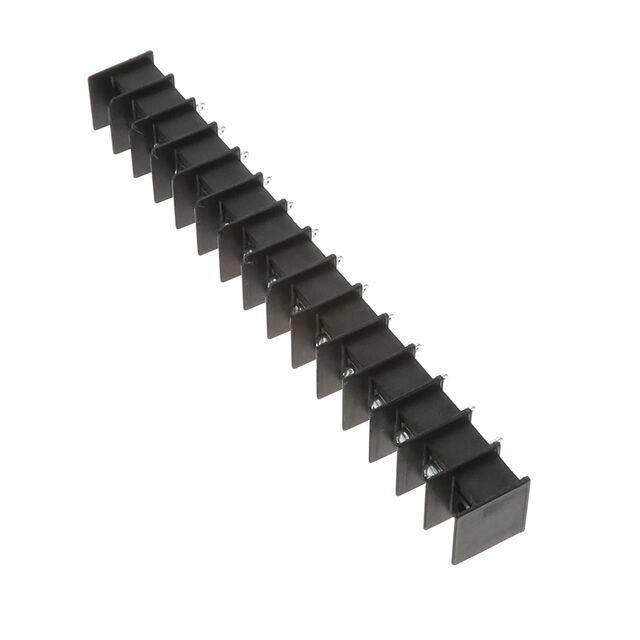

CONN BARRIER STRP 13CIRC 0.438"
| Part | Terminal Screw Material | Material - Insulation | Operating Temperature | Mounting Type | Material Flammability Rating | Terminal Screw Finish | Features | Number of Wire Entries | Top Termination | Voltage Rating | Wire Gauge [Max] | Wire Gauge [Min] | Bottom Termination | Bottom Termination [custom] | Number of Rows | Current Rating (Amps) | Pitch [x] | Pitch [x] | Number of Circuits | Barrier Type | Terminal Block Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 13 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 13 | 2 Wall (Dual) | Barrier Block |
 Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 25 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 25 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 16 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 16 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 22 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 22 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 17 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 17 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 15 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 15 | 2 Wall (Dual) | Barrier Block |
 Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 1 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 1 | 2 Wall (Dual) | Barrier Block | ||

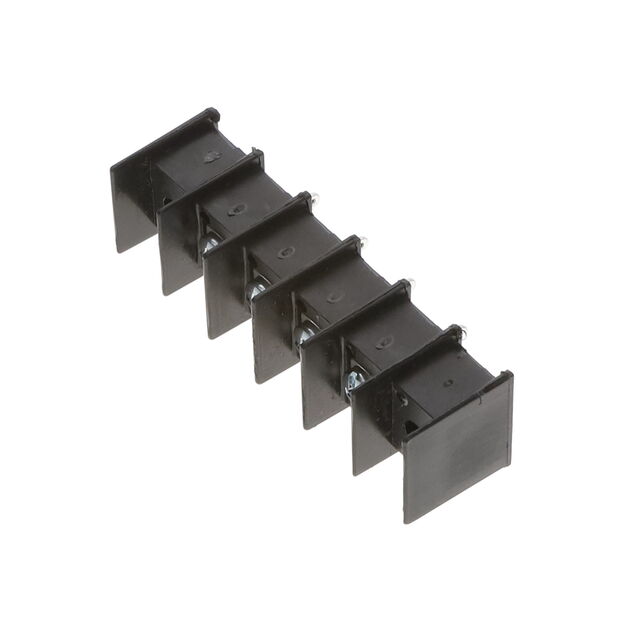

 Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 4 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 4 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 5 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 5 | 2 Wall (Dual) | Barrier Block |
Curtis Industries | Steel | Polypropylene (PP) | 105 C | Chassis Panel | UL94 V-0 | Zinc | Flange | 12 | Screws | 600 V | 22 AWG | 12 AWG | Quick Connect | 0.11 in | 1 | 20 A | 0.438 in | 11.12 mm | 12 | 2 Wall (Dual) | Barrier Block |
