147741 Series

Catalog

CONN RCPT 72POS 0.1 GOLD SMD

Part	Number of Rows	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Material	Number of Positions Loaded	Insulation Color	Contact Material	Mounting Type	Contact Finish - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Insulation Height	Insulation Height	Features	Contact Finish - Mating	Style	Contact Shape	Connector Type	Current Rating (Amps)

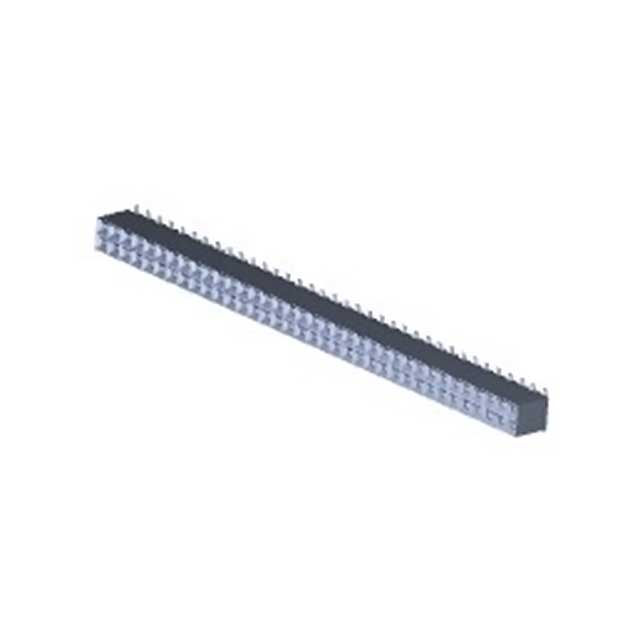

TE Connectivity Raychem Cable Protection 8-147741-6	2	UL94 V-0	2.54 mm	0.1 in	30 Áin	0.76 Ám	125 °C	-65 ░C	Solder	Polyester Glass Filled	All	Black	Phosphor Bronze	Surface Mount	Tin	72	150 Áin	3.81 Ám	0.1 in	2.54 mm	Push-Pull	Female Socket	6.73 mm	0.265 in	Pick and Place	Gold	Board to Board Cable	Square	Receptacle Bottom or Top Entry	2 A

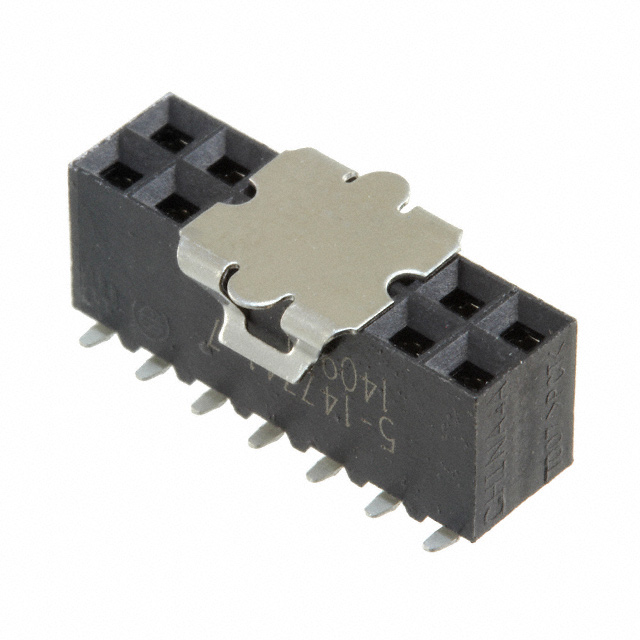

TE Connectivity Raychem Cable Protection 5-147741-7	2	UL94 V-0	2.54 mm	0.1 in	30 Áin	0.76 Ám	125 °C	-65 ░C	Solder	Polyester Glass Filled	All	Black	Phosphor Bronze	Surface Mount	Tin	14	150 Áin	3.81 Ám	0.1 in	2.54 mm	Push-Pull	Female Socket	6.73 mm	0.265 in	Pick and Place	Gold	Board to Board Cable	Square	Receptacle Bottom or Top Entry	2 A
