40.51.8 Series

Catalog

RELAY GEN PURPOSE SPDT 10A 12V

Part	Coil Resistance	Approval Agency	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Seal Rating	Load - Max Switching [Max]	Switching Voltage [Max]	Coil Current	Contact Material	Contact Form	Coil Type	Coil Voltage	Must Operate Voltage	Contact Rating (Current)	Relay Type	Mounting Type	Termination Style	Release Time	Load - Max Switching
Finder Relays, Inc. 40.51.8.012.0000	80 Ohms	CCC CSA cURus EAC ENEC RINA VDE	2.4 VAC/DC	85 °C	-40 C	7 ms	Sealed - Flux Protection	4000 VA	400 VAC	90 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	Non Latching	12 VAC	9.6 VAC/DC	10 A	General Purpose	Socketable	Plug In	3 ms

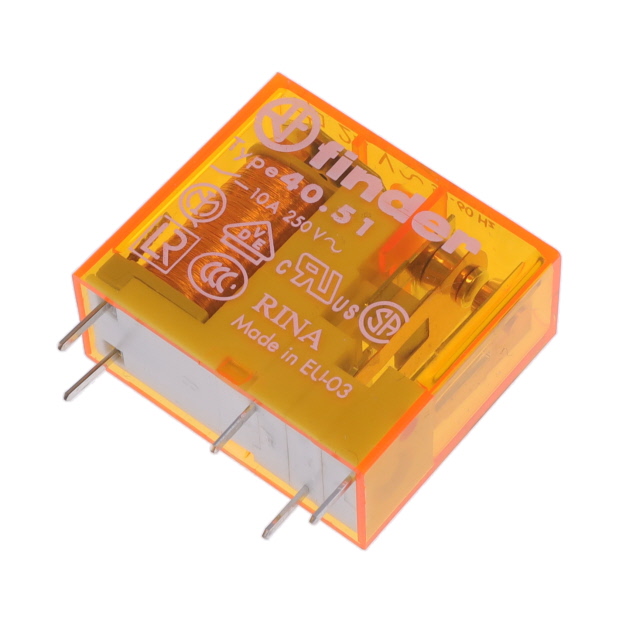

Finder Relays, Inc. 40.51.8.024.0000	320 Ohms	CCC CSA cURus EAC ENEC RINA VDE	4.8 VAC	85 °C	-40 C	7 ms	Sealed - Flux Protection	4000 VA	400 VAC	45 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	Non Latching	24 VAC	19.2 VAC	10 A	General Purpose	Socketable	Plug In	3 ms
Finder Relays, Inc. 40.51.8.240.0000	31.5 kOhms	CCC CSA cURus EAC ENEC RINA VDE	48 VAC	85 °C	-40 C	7 ms	Sealed - Flux Protection	4000 VA	400 VAC	4.1 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	Non Latching	240 VAC/DC	192 VAC	10 A	General Purpose	Socketable	Plug In	3 ms

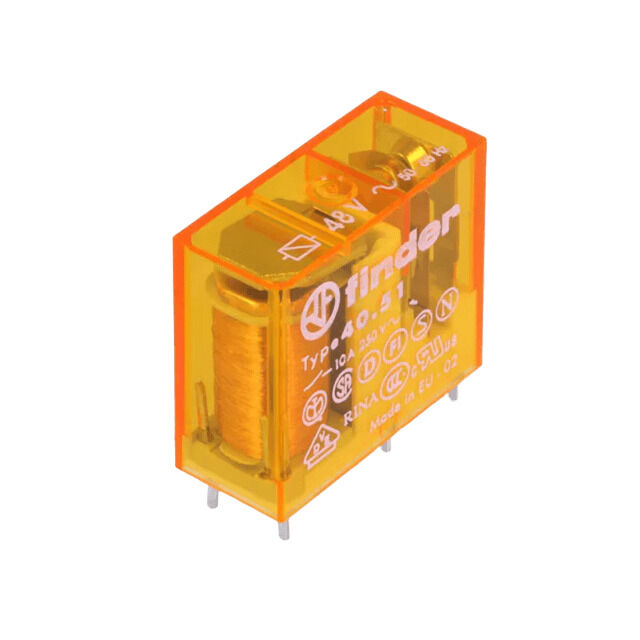

Finder Relays, Inc. 40.51.8.048.0000	1.35 kOhms	CCC CSA cURus EAC ENEC RINA VDE	9.6 VAC	85 °C	-40 C	7 ms	Sealed - Flux Protection		400 VAC	21 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	Non Latching	48 VAC	38.4 VAC	12 A	General Purpose	Socketable	Plug In	3 ms	4800 VA
Finder Relays, Inc. 40.51.8.120.5000	9 kOhms	CCC CSA cURus EAC ENEC RINA VDE	24 VAC	85 °C	-40 C	7 ms	Sealed - Flux Protection	4000 VA	400 VAC	8.4 mA	Silver Nickel (AgNi)	SPDT (1 Form C)	Non Latching	120 VAC	96 VAC	10 A	General Purpose	Socketable	Plug In	3 ms
