627-050 Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 50POS SOLDER CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Color	Contact Material	Contact Finish	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Rows [custom]	Connector Type	Number of Positions	Current Rating (Amps)	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Shell Material, Finish	Material Flammability Rating	Mounting Type	Termination	Contact Finish Thickness
EDAC Inc. 627-050-322-061	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.38 µm	15 µin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded	Nickel Plated Steel	UL94 V-0	Free Hanging (In-Line)
EDAC Inc. 627-050-620-242	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.76 Ám	30 Áin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded		UL94 V-0	Through Hole	Solder
EDAC Inc. 627-050-622-062	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.76 Ám	30 Áin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded	Nickel Plated Steel	UL94 V-0	Free Hanging (In-Line)
EDAC Inc. 627-050-222-042	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub			Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded	Nickel Plated Steel	UL94 V-0	Free Hanging (In-Line)		Flash
EDAC Inc. 627-050-221-042	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub			Board Side (4-40)	3	Plug Male Pins	50	5 A	Signal	5	D DD	Grounding Indents Shielded	Nickel Plated Steel	UL94 V-0	Through Hole	Solder	Flash
EDAC Inc. 627-050-228-048	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub			Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Shielded	Nickel Plated Steel	UL94 V-0	Through Hole	Solder	Flash
EDAC Inc. 627-050-220-043	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub			Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded	Nickel Plated Steel	UL94 V-0	Through Hole	Solder	Flash
EDAC Inc. 627-050-622-068	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.76 Ám	30 Áin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Shielded	Nickel Plated Steel	UL94 V-0	Free Hanging (In-Line)

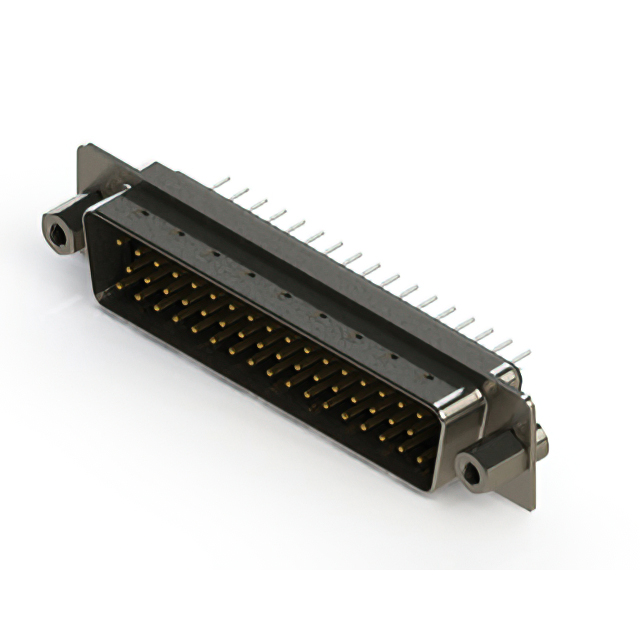

EDAC Inc. 627-050-620-263	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.76 Ám	30 Áin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Grounding Indents Shielded		UL94 V-0	Through Hole	Solder
EDAC Inc. 627-050-622-248	-55 C	85 °C	Polyester Thermoplastic	Black	Brass	Gold	D-Sub	0.76 Ám	30 Áin	Board Side (4-40)	3	Plug Male Pins	50	3 A	Signal	5	D DD	Shielded		UL94 V-0	Free Hanging (In-Line)
