ECQ-P1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.18UF 1% 50VDC RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - DC	Termination	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECQ-P1H184FZW	0.354 in	0.787 in	9 mm	20 mm	1 %	0.394 in	10 mm	50 VDC	PC Pins	Polypropylene (PP)	21 mm	0.827 "	High Frequency Switching	85 °C	-40 °C	Radial	0.18 µF	Through Hole
Panasonic Industrial Automation Sales ECQ-P1H394FZW	0.433 in	0.886 "	11 mm	22.5 mm	1 %	0.492 in	12.5 mm	50 VDC	PC Pins	Polypropylene (PP)	25 mm	0.984 "	High Frequency Switching	85 °C	-40 °C	Radial	0.39 µF	Through Hole

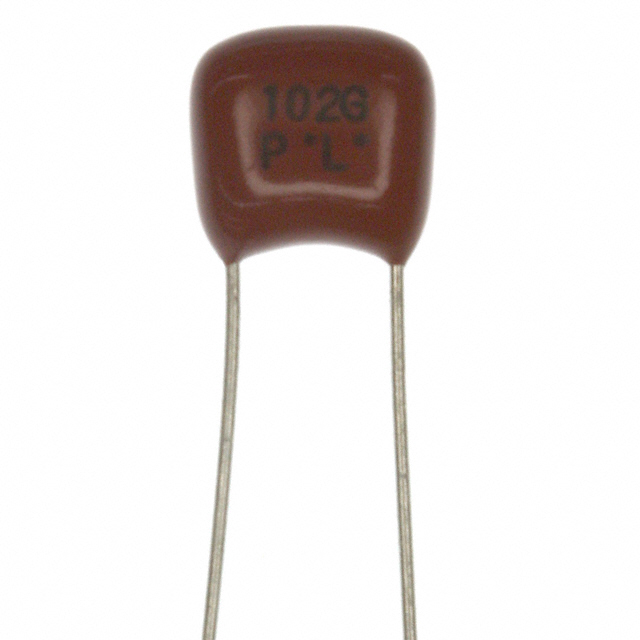

Panasonic Industrial Automation Sales ECQ-P1H102GZ	0.177 "	0.335 "	4.5 mm	8.5 mm	2 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	0.001 µF	Through Hole	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECQ-P1H204FZW	0.374 in	0.787 in	9.5 mm	20 mm	1 %	0.394 in	10 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial		Through Hole	0.846 in	21.5 mm
Panasonic Industrial Automation Sales ECQ-P1H104GZW					2 %	0.295 in	7.5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	100000 pF	Through Hole	0.768 in	19.5 mm
Panasonic Industrial Automation Sales ECQ-P1H121JZ	0.177 "	0.335 "	4.5 mm	8.5 mm	5 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	120 pF	Through Hole	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECQ-P1H112FZW	0.177 "	0.335 "	4.5 mm	8.5 mm	1 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	1100 pF	Through Hole	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECQ-P1H563GZ	0.256 in	0.571 in	6.5 mm	14.5 mm	2 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	0.056 µF	Through Hole	0.728 in	18.5 mm

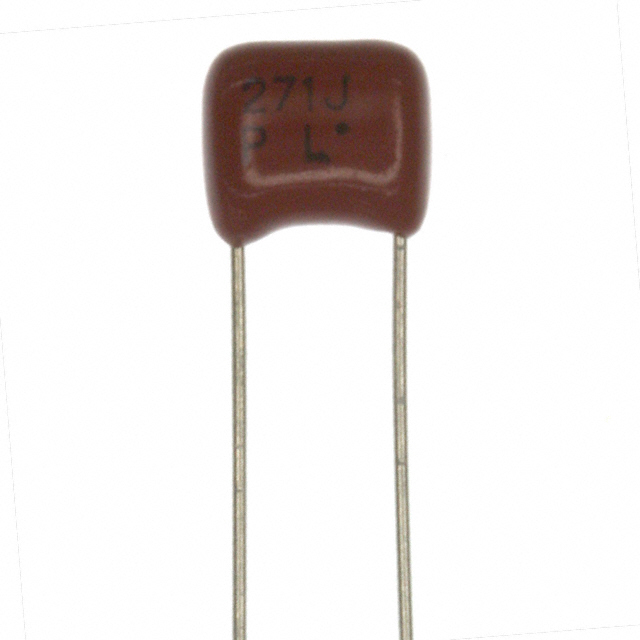

Panasonic Industrial Automation Sales ECQ-P1H271JZ	0.177 "	0.335 "	4.5 mm	8.5 mm	5 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	270 pF	Through Hole	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECQ-P1H222GZW	0.177 "	0.335 "	4.5 mm	8.5 mm	2 %	0.197 in	5 mm	50 VDC	PC Pins	Polypropylene (PP)			High Frequency Switching	85 °C	-40 °C	Radial	2200 pF	Through Hole	0.492 in	12.5 mm
