M2022TX Series

Catalog

SWITCH ROCKER 3PDT 6A 125V

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Circuit	Switch Function	Voltage Rating - AC	Actuator Marking	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Color - Actuator/Cap	Features

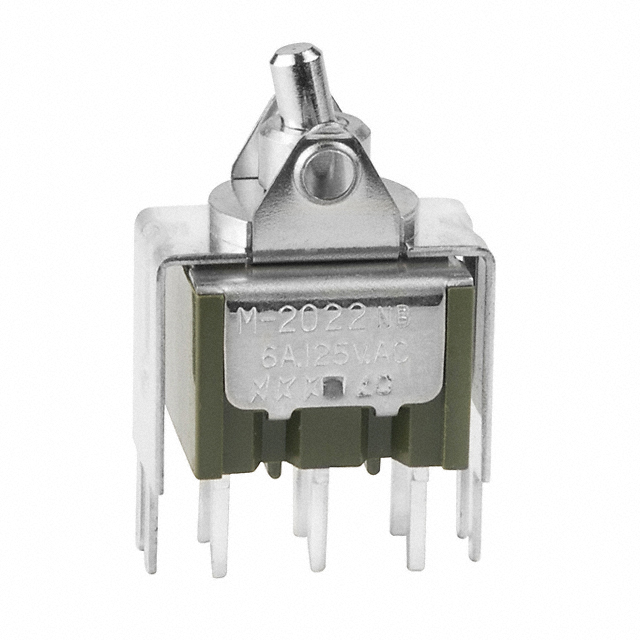

NKK Switches M2022TXW13/CUL-235A	50000 Cycles	25000 Steps	30 V	4 A 6 A	Actuator Arm Cap Required	3PDT	On-On	125 V	Varies by Cap	CSA UL	85 °C	-30 ░C
NKK Switches M2022TXG30-KA	50000 Cycles	50000 Cycles	28 V	0.4 VA	Paddle	DPDT	On-On	28 V	No Marking	CSA UL	85 °C	-30 ░C	Right Angle Through Hole	PC Pin	Black	Epoxy Sealed Terminals
NKK Switches M2022TXW13-DC	50000 Cycles	25000 Steps	30 V	4 A 6 A	Concave	DPDT	On-On	125 V	No Marking	CSA UL	85 °C	-30 ░C	Through Hole	PC Pin	Red	Epoxy Sealed Terminals

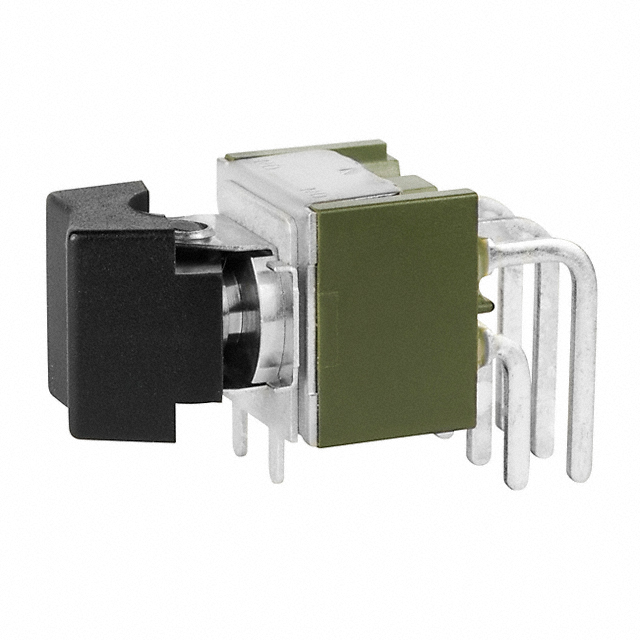

NKK Switches M2022TXW30-FA	50000 Cycles	25000 Steps	30 V	4 A 6 A	Concave	DPDT	On-On	125 V	No Marking	CSA UL	85 °C	-30 ░C	Right Angle Through Hole	PC Pin	Black	Epoxy Sealed Terminals

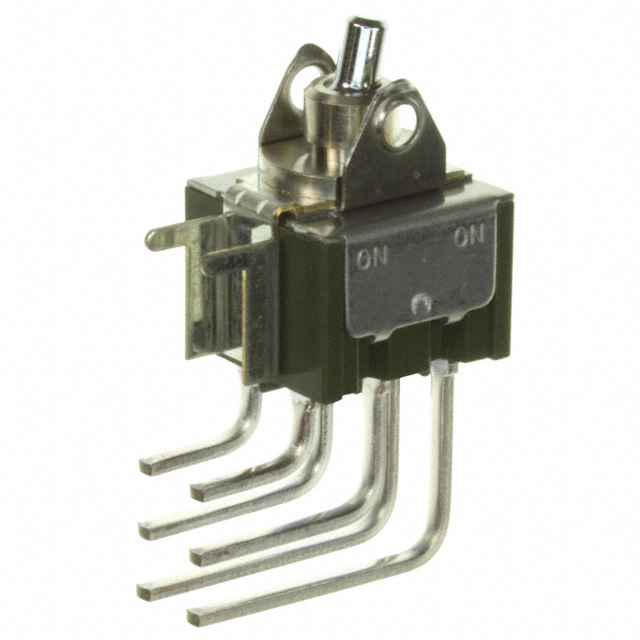

NKK Switches M2022TXW41	50000 Cycles	25000 Steps	30 V	4 A 6 A	Actuator Arm Cap Required	DPDT	On-On	125 V	Varies by Cap	CSA UL	85 °C	-30 ░C	Right Angle Through Hole Vertical	PC Pin		Epoxy Sealed Terminals

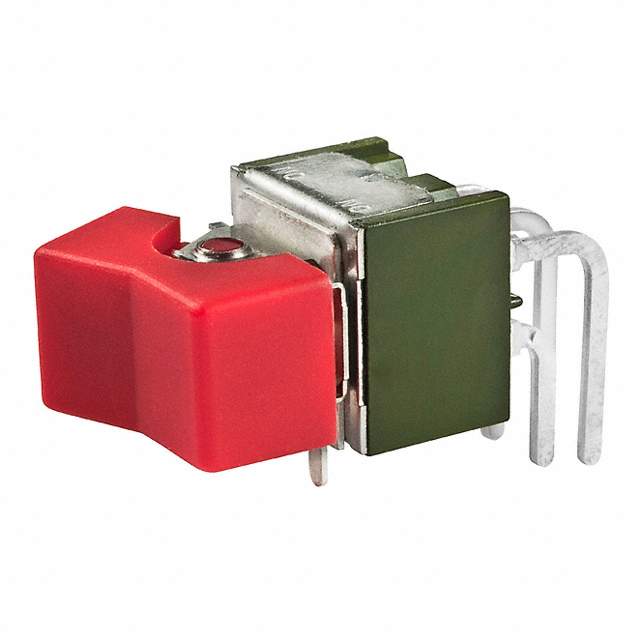

NKK Switches M2022TXW30-DC	50000 Cycles	25000 Steps	30 V	4 A 6 A	Concave	DPDT	On-On	125 V	No Marking	CSA UL	85 °C	-30 ░C	Right Angle Through Hole	PC Pin	Red	Epoxy Sealed Terminals
NKK Switches M2022TXW13/CUL-235A-DA	50000 Cycles	25000 Steps	30 V	4 A 6 A	Concave	3PDT	On-On	125 V	No Marking	CSA UL	85 °C	-30 ░C			Black
NKK Switches M2022TXG13-DB	50000 Cycles	50000 Cycles	28 V	0.4 VA	Concave	DPDT	On-On	28 V	No Marking	CSA UL	85 °C	-30 ░C	Through Hole	PC Pin	White	Epoxy Sealed Terminals
NKK Switches M2022TXW30/CUL	50000 Cycles	25000 Steps	30 V	4 A 6 A	Actuator Arm Cap Required	DPDT	On-On	125 V	Varies by Cap	CSA UL	85 °C	-30 ░C	Right Angle Through Hole	PC Pin		Epoxy Sealed Terminals

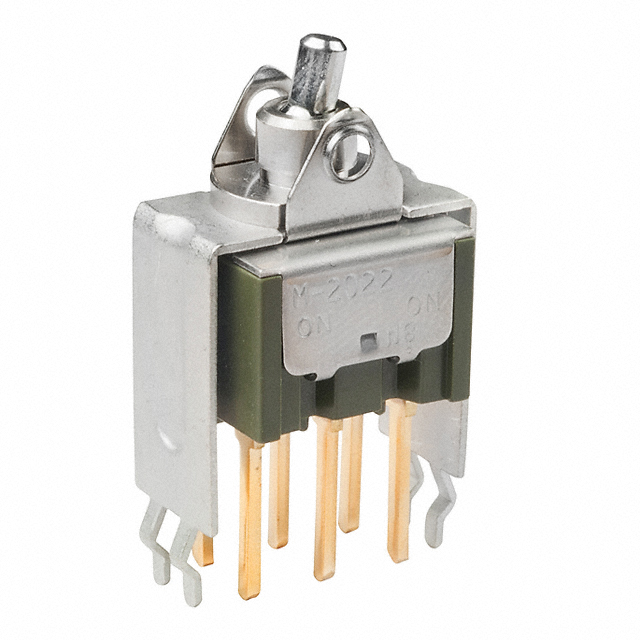

NKK Switches M2022TXG15/108	50000 Cycles	50000 Cycles	28 V	0.4 VA	Actuator Arm Cap Required	DPDT	On-On	28 V	Varies by Cap	CSA UL	85 °C	-30 ░C	Through Hole	PC Pin		Epoxy Sealed Terminals
