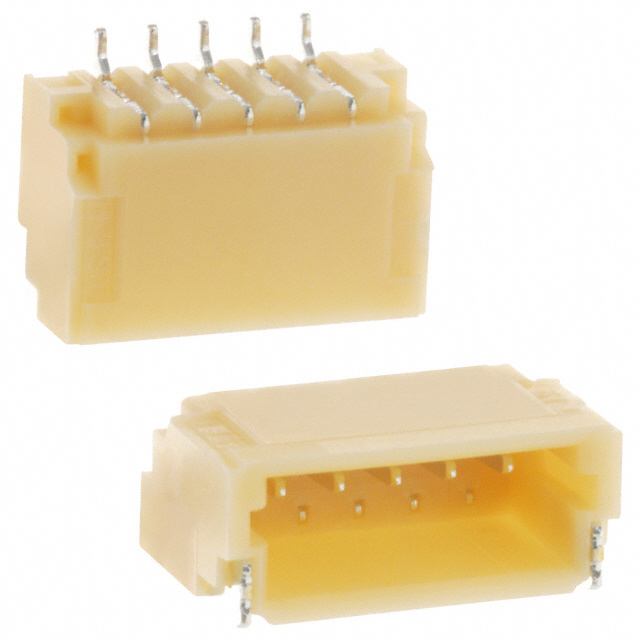

SM05B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 5POS 1MM
| Part | Voltage Rating | Number of Rows | Contact Material | Contact Shape | Connector Type | Mounting Type | Insulation Material | Material Flammability Rating | Number of Positions Loaded | Contact Type | Termination | Number of Positions | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shrouding | Insulation Color | Features | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Style | Contact Finish - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | 1 | Copper Alloy | Square | Header | Right Angle Surface Mount | Nylon Polyamide (PA) | UL94 V-0 | All | Male Pin | Solder | 5 | 0.114 in | 2.9 mm | 85 °C | -25 °C | Push-Pull | Shrouded - 4 Wall | Natural | Solder Retention | 1 mm | 0.039 in | Tin | Board to Cable/Wire | ||
 JST Sales America Inc. | 50 V | 1 | Copper Alloy | Square | Header | Right Angle Surface Mount | Nylon Polyamide (PA) | UL94 V-0 | All | Male Pin | Solder | 5 | 0.114 in | 2.9 mm | 85 °C | -25 °C | Push-Pull | Shrouded - 4 Wall | Natural | Solder Retention | 1 mm | 0.039 in | Board to Cable/Wire | Gold | 0.7 A |
