146139 Series

Catalog

CONN RCPT 4POS 0.1 GOLD PCB R/A

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Fastening Type	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post

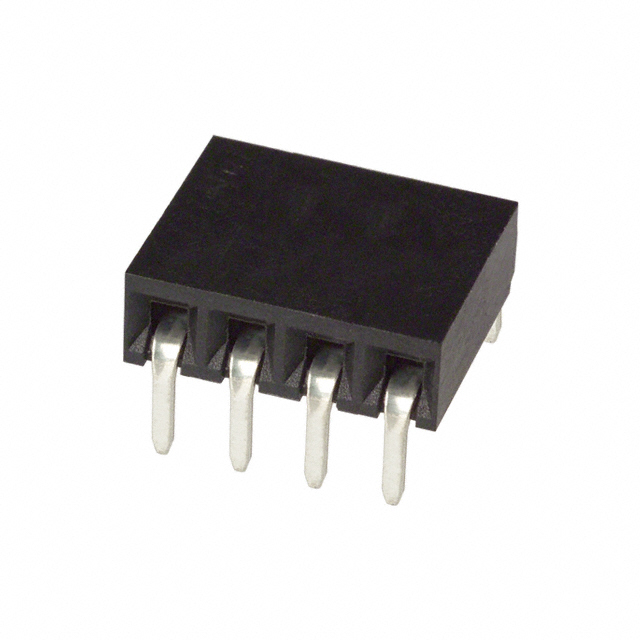

TE Connectivity Raychem Cable Protection 146139-3	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	4	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin

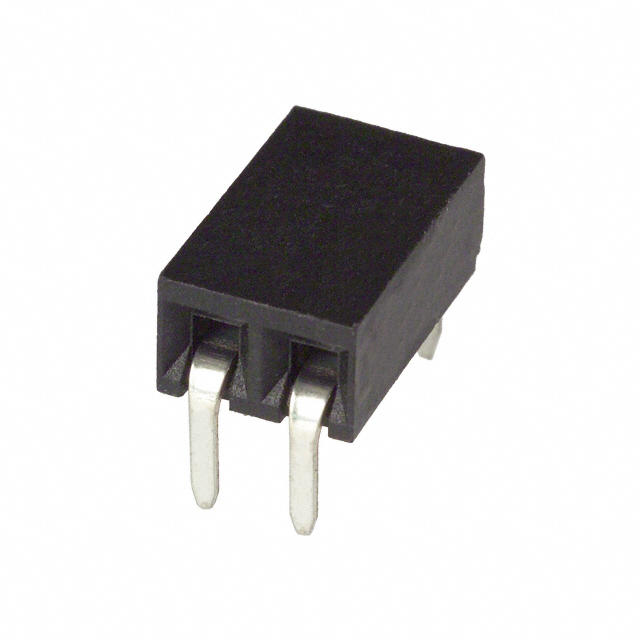

TE Connectivity Raychem Cable Protection 146139-1	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	2	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin

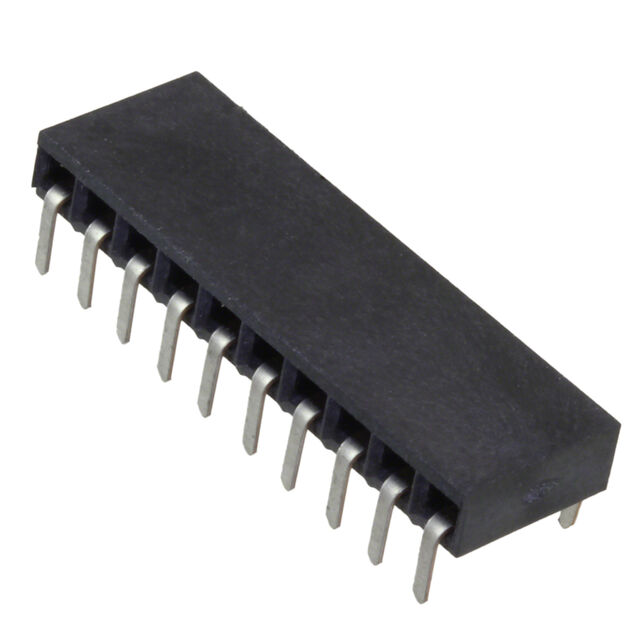

TE Connectivity Raychem Cable Protection 146139-9	Through Hole Right Angle	0.1 in	2.54 mm	Solder	Black	2.92 mm	0.115 in	10 çin	0.25 çm	Gold	Phosphor Bronze	Tin-Lead	3.47 mm	0.137 in	Receptacle	1	10	-55 °C	125 °C	Female Socket	Square	Push-Pull	Polyester Glass Filled	All	1.27 µm	50 µin
