| Part | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Electrical Life | Actuator Type | Voltage Rating - DC | Circuit | Release Force | Differential Travel | Differential Travel | Mechanical Life | Operating Force | Ingress Protection | Termination Style | Pretravel | Pretravel | Overtravel [custom] | Overtravel [custom] | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

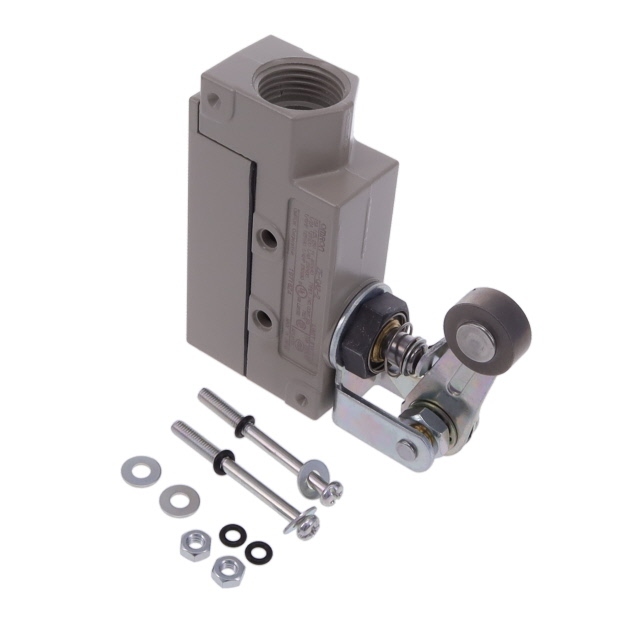

 Omron Automation and Safety | 125 V | -10 °C | 80 °C | On-Mom | 500000 Cycles | Lever Roller | 125 VDC | SPDT | 170 gf | 0.016 in | 0.4 mm | 10000000 Cycles | 570 gf | IP60 | Screw Terminal | 4 mm | 0.157 in | 0.235 " | 6 mm | Chassis Mount | 15 A 500 mA |

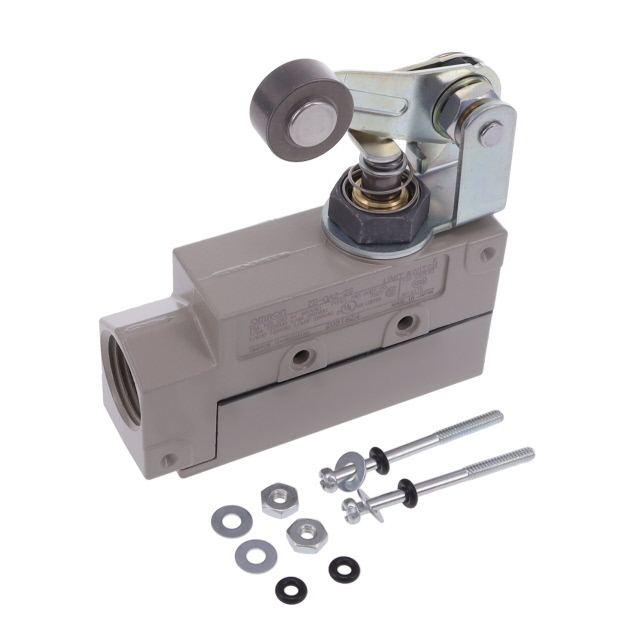

 Omron Automation and Safety | 125 V | -10 °C | 80 °C | On-Mom | 500000 Cycles | Lever Roller | 125 VDC | SPDT | 170 gf | 0.016 in | 0.4 mm | 10000000 Cycles | 570 gf | IP60 | Screw Terminal | 4 mm | 0.157 in | 0.235 " | 6 mm | Chassis Mount | 15 A 500 mA |
