BQ27411-G1 Series

Pack-side Impedance Track™ fuel gauge | battery gas gauge

Catalog

Pack-side Impedance Track™ fuel gauge | battery gas gauge

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Function	Mounting Type	Number of Cells	Package / Case	Battery Chemistry	Interface	Supplied Contents	Type	Utilized IC / Part	Contents

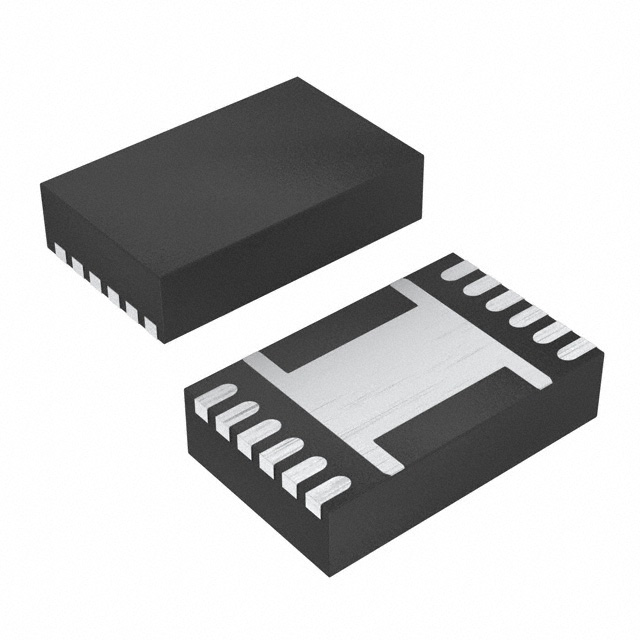

Texas Instruments BQ27411DRZT-G1A	12-SON (2.5x4)	85 °C	-40 °C	Battery Monitor	Surface Mount	1	12-VFDFN Exposed Pad	Lithium Ion	I2C
Texas Instruments BQ27411DRZR-G1C	12-SON (2.5x4)	85 °C	-40 °C	Battery Monitor	Surface Mount	1	12-VFDFN Exposed Pad	Lithium Ion	I2C

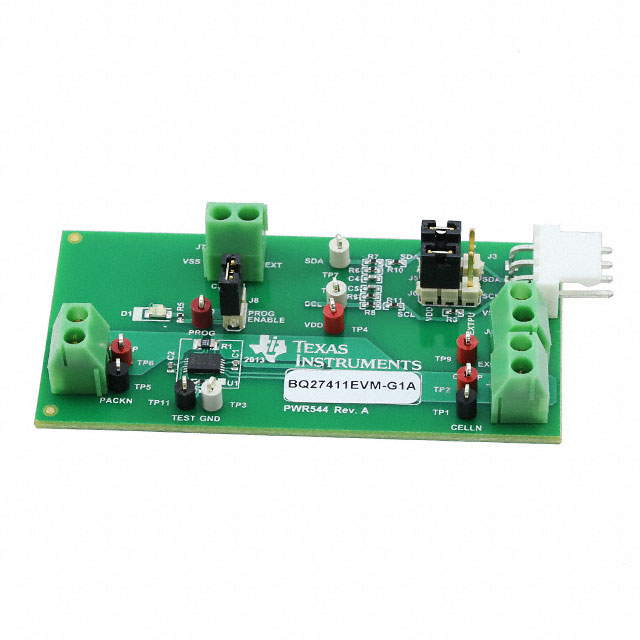

Texas Instruments BQ27411EVM-G1A				Battery Gauge						Board(s)	Power Management	BQ27411-G1A

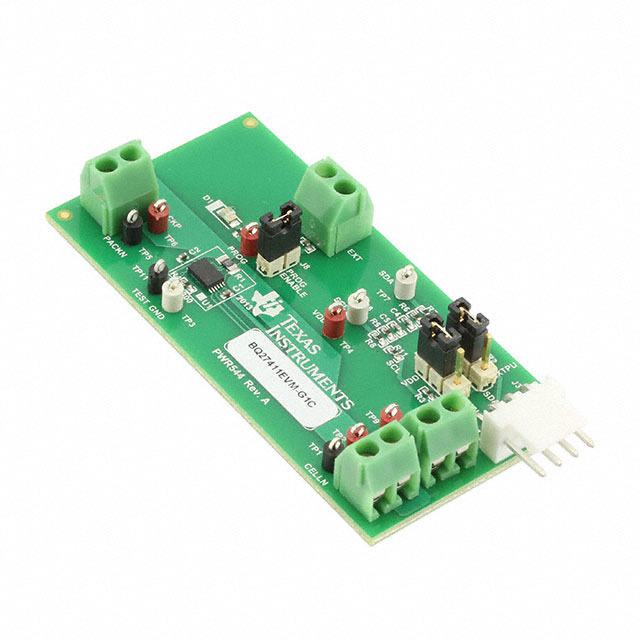

Texas Instruments BQ27411EVM-G1C				Battery Gauge						Board(s)	Power Management	BQ27411-G1C	Board(s)
Texas Instruments BQ27411DRZT-G1C	12-SON (2.5x4)	85 °C	-40 °C	Battery Monitor	Surface Mount	1	12-VFDFN Exposed Pad	Lithium Ion	I2C
Texas Instruments BQ27411DRZR-G1A	12-SON (2.5x4)	85 °C	-40 °C	Battery Monitor	Surface Mount	1	12-VFDFN Exposed Pad	Lithium Ion	I2C

Catalog

Pack-side Impedance Track™ fuel gauge | battery gas gauge

Key Features

• Single-Cell Li-Ion Battery Fuel GaugeResides in Battery PackLow-Value External Sense Resistor(10 mΩ Typical)One Time Programmable (OTP) Configuration Non-Volatile Memory (NVM)Powered Directly from Battery with Integrated LDO400-kHz I2C™ Serial InterfaceInternal Temperature Sensor orHost-reported TemperatureBattery Fuel Gauging Based on Patented Impedance Track™ TechnologyReports Remaining Capacity and State of Charge (SOC) with Smoothing FilterAutomatically Adjusts for Battery Aging, Self-discharge, Temperature, and Rate ChangesBattery State of Health (Aging) EstimationSingle-Cell Li-Ion Battery Fuel GaugeResides in Battery PackLow-Value External Sense Resistor(10 mΩ Typical)One Time Programmable (OTP) Configuration Non-Volatile Memory (NVM)Powered Directly from Battery with Integrated LDO400-kHz I2C™ Serial InterfaceInternal Temperature Sensor orHost-reported TemperatureBattery Fuel Gauging Based on Patented Impedance Track™ TechnologyReports Remaining Capacity and State of Charge (SOC) with Smoothing FilterAutomatically Adjusts for Battery Aging, Self-discharge, Temperature, and Rate ChangesBattery State of Health (Aging) Estimation

Description

The Texas Instruments bq27411-G1 device is a battery fuel gauging solution for single-cell Li-Ion battery packs. The device requires minimal configuration and uses One Time Programmable (OTP) Non-Volatile Memory (NVM) to avoid an initialization download by the system processor. The fuel gauge uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), and battery voltage (mV). The small, 12-pin, 2.50 mm × 4.00 mm, Small Outline No-Lead (SON) package is ideal for space-constrained applications. The Texas Instruments bq27411-G1 device is a battery fuel gauging solution for single-cell Li-Ion battery packs. The device requires minimal configuration and uses One Time Programmable (OTP) Non-Volatile Memory (NVM) to avoid an initialization download by the system processor. The fuel gauge uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), and battery voltage (mV). The small, 12-pin, 2.50 mm × 4.00 mm, Small Outline No-Lead (SON) package is ideal for space-constrained applications.
