PPTC271 Series

Catalog

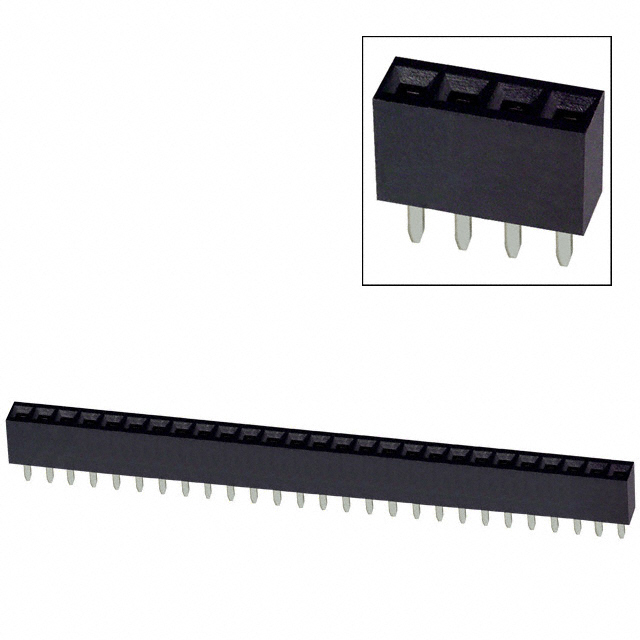

CONN HDR 27POS 0.1 TIN PCB

Part	Contact Material	Contact Shape	Insulation Material	Number of Rows	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Color	Number of Positions	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Fastening Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Post
Sullins Connector Solutions PPTC271LFBN	Phosphor Bronze	Square	Polyester	1	250 V	0.126 "	3.2 mm	0.1 "	2.54 mm	Header	Black	27	Through Hole	UL94 V-0	0.335 "	8.51 mm	All	Solder	Push-Pull	3 A	-40 C	105 ░C	Female Socket	Tin
Sullins Connector Solutions PPTC271LFBN-RC	Phosphor Bronze	Square	Polyester	1	250 V	0.126 "	3.2 mm	0.1 "	2.54 mm	Header	Black	27	Through Hole	UL94 V-0	0.335 "	8.51 mm	All	Solder	Push-Pull	3 A	-40 C	105 ░C	Female Socket	Tin
