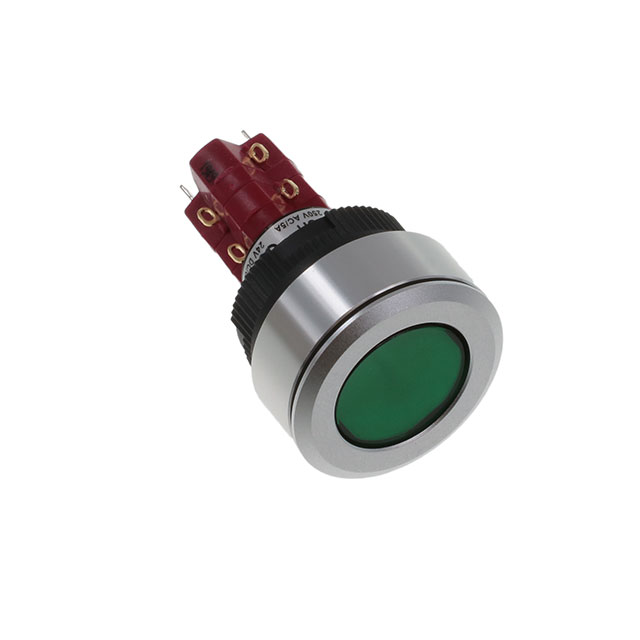

LASEEV32 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON DPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Actuator Type | Circuit | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Type, Color | Mounting Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Type | Switch Function | Ingress Protection | Termination Style | Illumination Voltage (Nominal) | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 50000 Cycles | Yellow | Button Flush Round | DPDT | 24 V | 55 °C | -20 ░C | 125 V | LED Yellow | Panel Mount Front | 25.5 mm | 6 A 8 A | Illuminated Standard | On-On | IP65 - Dust Tight Water Resistant | Solder Lug | 24 V | No Marking |
E-Switch | 100000 Cycles | 50000 Cycles | Green | Button Flush Round | DPDT | 24 V | 55 °C | -20 ░C | 125 V | Green LED | Panel Mount Front | 25.5 mm | 6 A 8 A | Illuminated Standard | On-On | IP65 - Dust Tight Water Resistant | Solder Lug | 24 V | No Marking |
 E-Switch | 100000 Cycles | 50000 Cycles | Green | Button Flush Round | DPDT | 24 V | 55 °C | -20 ░C | 125 V | Green LED | Panel Mount Front | 25.5 mm | 6 A 8 A | Illuminated Standard | On-On | IP65 - Dust Tight Water Resistant | Solder Lug | 6 VDC | No Marking |
