842-074 Series

Manufacturer: EDAC Inc.

Catalog

842 HIGH TEMP' SERIES (.100" (2.

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Gender	Contact Material	Mounting Type	Pitch	Pitch	Card Type	Read Out	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Color	Contact Finish	Features

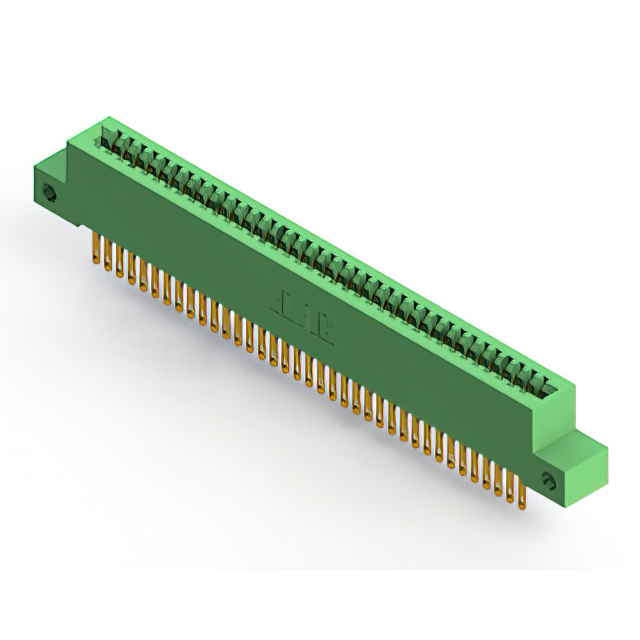

EDAC Inc. 842-074-500-212	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	Green	Gold
EDAC Inc. 842-074-559-202	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	Green	Gold
EDAC Inc. 842-074-541-202	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	Green	Gold
EDAC Inc. 842-074-558-208	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			2	Green	Gold
EDAC Inc. 842-074-558-203	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Right Angle Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	Green	Gold

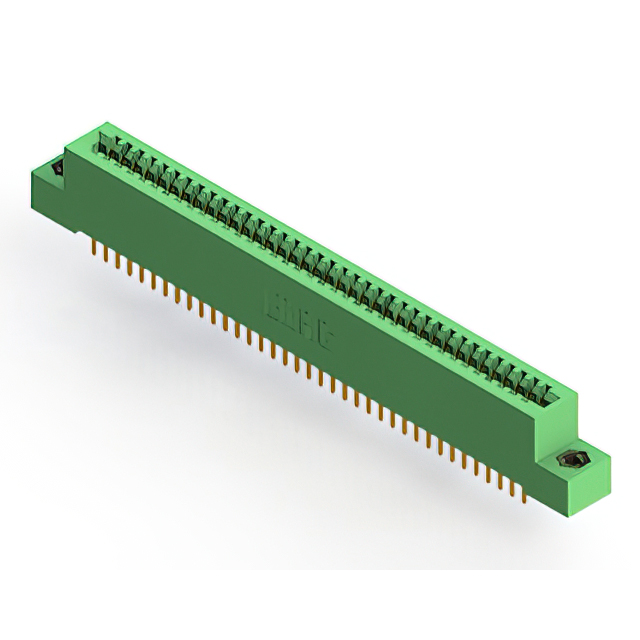

EDAC Inc. 842-074-521-208	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			2	Green	Gold

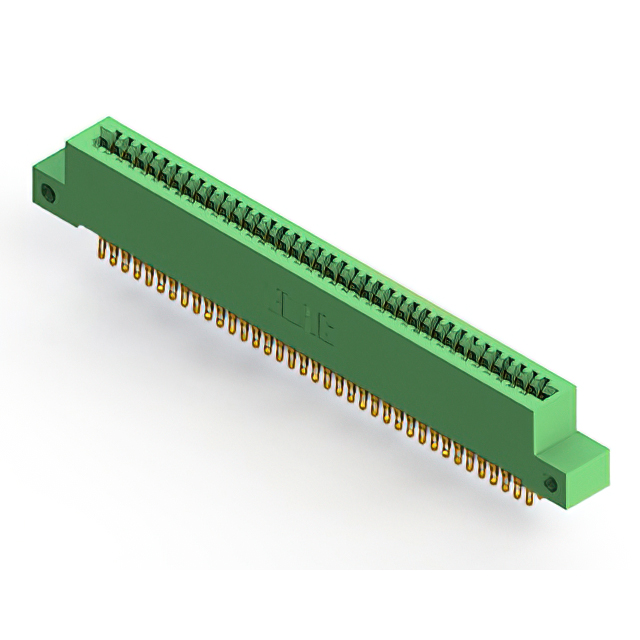

EDAC Inc. 842-074-555-212	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Board Edge Straddle Mount	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	2	Green	Gold	Card Extender

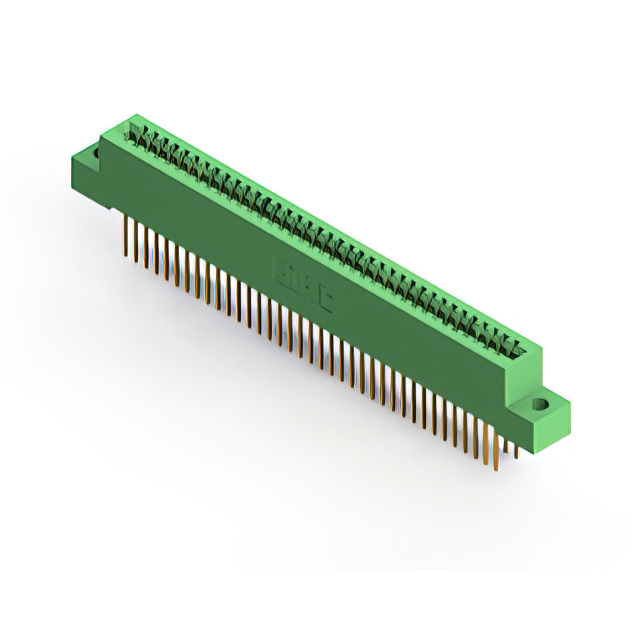

EDAC Inc. 842-074-541-204	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	2	Green	Gold

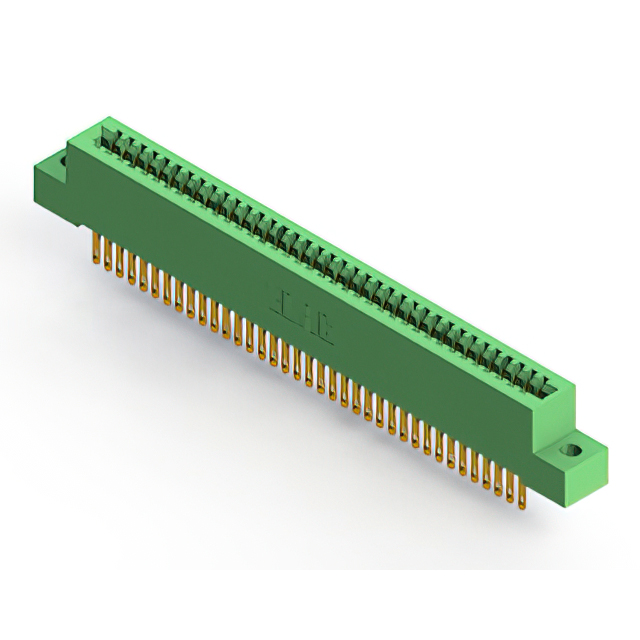

EDAC Inc. 842-074-500-202	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	Green	Gold
EDAC Inc. 842-074-520-207	Diallyl Phthalate (DAP)	2	74	Female	Copper Alloy	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	Dual	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	37	0.25 Ám	10 Áin	Cantilever	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening			2	Green	Gold
