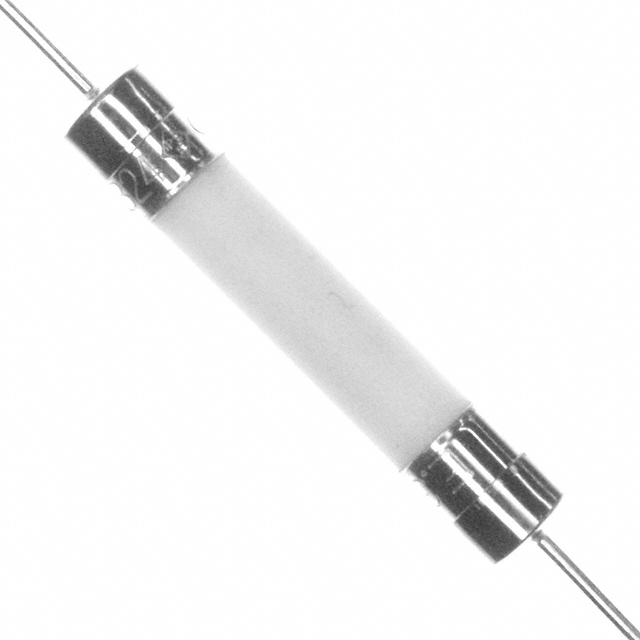

FUSE 250V FA PT 3AB Pb-FREE 4A
Description
AI
The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V FA PT 3AB Pb-FREE 4A
FUSE 250V FA PT 3AB Pb-FREE 4A
| Part | DC Cold Resistance | Fuse Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Approval Agency | Response Time | Voltage Rating - DC | Package / Case [y] | Package / Case | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.047 Ohms | Cartridge Ceramic | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 250 V | 4 A | 10 kA 750 A | 10.4 I²t | -55 C | 125 °C | Through Hole | CE CSA K-Mark PSE UL | Fast Blow | 125 VDC | 3AB 3AG | 0.25 " | |
 LITTELFUSE | Cartridge Ceramic | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 250 V | 4 A | 10 kA 750 A | 10.4 I²t | -55 C | 125 °C | Through Hole | CE CSA KC PSE UL | Fast Blow | 125 VDC | 3AB 3AG | 0.25 " | ||
 LITTELFUSE | Cartridge Ceramic | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 250 V | 4 A | 10 kA 750 A | 10.4 I²t | -55 C | 125 °C | Through Hole | CE CSA K-Mark PSE UL | Fast Blow | 125 VDC | 3AB 3AG | 0.25 " |
