97131 Series
Manufacturer: Pflitsch
Beta
⌘K

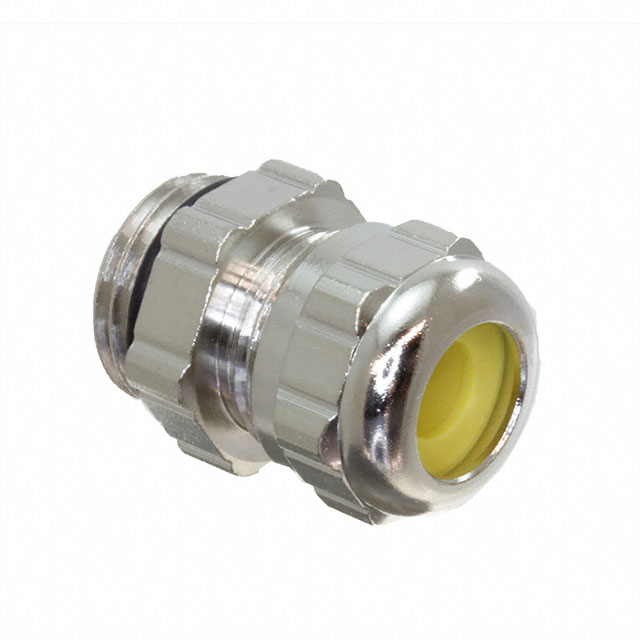

CABLE GLAND 4.06-6.6MM M16 BRASS
| Part | Color | Thread Length | Thread Length | Panel Hole Size | Panel Hole Size | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Material | Ingress Protection | Type | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | Silver | 6.1 mm | 0.24 in | 16 mm | 0.63 in | 6.6 mm | 0.26 in | Brass Nickel Plated | IP68 - Dust Tight Waterproof NEMA 4X | Cable Gland | 4.06 mm | 0.16 in | Sealing Ring | -40 C | 300 °C | M16x1.5 |
