LHB-08 Series
Manufacturer: Adam Tech
Beta
⌘K

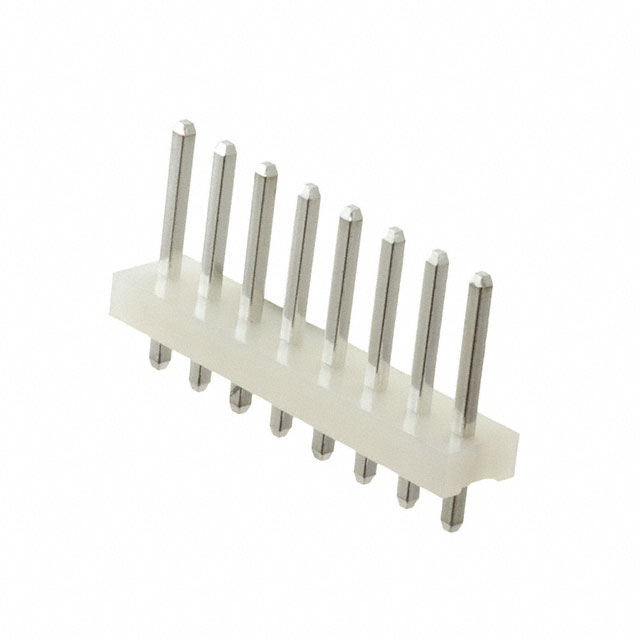

CONN HEADER VERT 8POS 3.96MM
| Part | Voltage Rating | Connector Type | Fastening Type | Insulation Height [z] | Insulation Height | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Insulation Color | Number of Positions | Shrouding | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Overall Contact Length | Overall Contact Length | Insulation Material | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Material | Contact Shape | Termination | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Contact Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 250 VAC | Header | Push-Pull | 0.126 " | 3.2 mm | 0.413 in | 10.5 mm | All | White | 8 | Unshrouded | 1 | 105 ░C | -25 °C | 17.5 mm | 0.689 in | Nylon 6/6 Polyamide (PA66) | UL94 V-2 | 3.96 mm | 0.156 in | Brass | Square | Solder | Through Hole | 3.81 mm | 0.15 in | 7 A | Male Pin | Tin |
