M252 Series

Catalog

M23-32KFLASH+8KRAM+UART+SPI+I2C+

Part	Package / Case	Package / Case	Number of I/O	Core Processor	Program Memory Size	Peripherals	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	RAM Size	Core Size	Program Memory Type	Speed	Connectivity	Supplier Device Package	Mounting Type	Data Converters	Package / Case [y]	Package / Case [x]

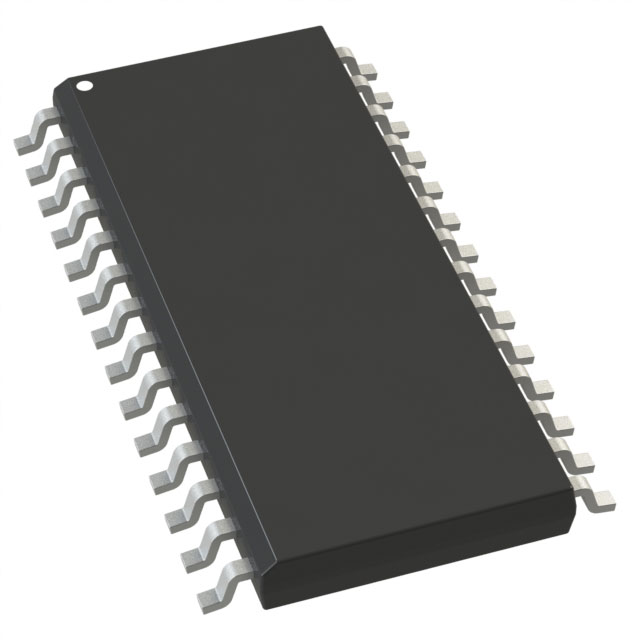

Nuvoton Technology Corporation M252EC2AE	0.173 " 4.4 mm	28-TSSOP	23	ARM® Cortex®-M23	32 KB	Brown-out Detect/Reset DMA LVR POR PWM WDT	1.75 V	5.5 V	A/D 9x12b SAR	-40 °C	105 °C	External Internal	8 K	32-Bit	FLASH	48 MHz	I2C IrDA LINbus QSPI SPI UART/USART	28-TSSOP	Surface Mount
Nuvoton Technology Corporation M252SC2AE		64-LQFP	54	ARM® Cortex®-M23	32 KB	Brown-out Detect/Reset DMA I2S LVR POR PWM WDT	1.75 V	5.5 V	A/D 16x12b SAR	-40 °C	105 °C	External Internal	8 K	32-Bit	FLASH	48 MHz	I2C IrDA LINbus QSPI SPI UART/USART	64-LQFP (7x7)	Surface Mount
Nuvoton Technology Corporation M252LG6AE		48-LQFP	41	ARM® Cortex®-M23	256 KB	Brown-out Detect/Reset DMA I2S LVR POR PWM WDT	1.75 V	5.5 V		-40 °C	105 °C	External Internal		32-Bit	FLASH	48 MHz	EBI/EMI I2C IrDA LINbus QSPI SPI UART/USART	48-LQFP (7x7)	Surface Mount	1 channels 12 channels 12 b

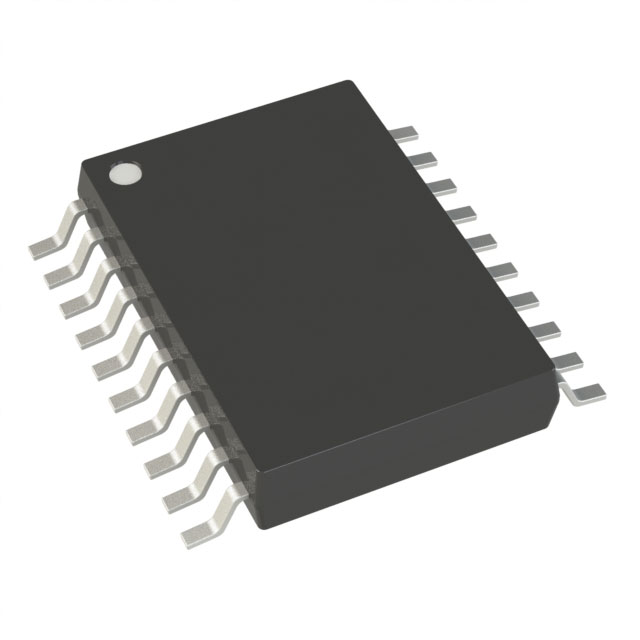

Nuvoton Technology Corporation M252FC2AE		20-TSSOP	15	ARM® Cortex®-M23	32 KB	Brown-out Detect/Reset DMA LVR POR PWM WDT	1.75 V	5.5 V	A/D 7x12b SAR	-40 °C	105 °C	External Internal	8 K	32-Bit	FLASH	48 MHz	I2C IrDA LINbus QSPI SPI UART/USART	20-TSSOP	Surface Mount		4.4 mm	0.173 "
