PPPC352 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

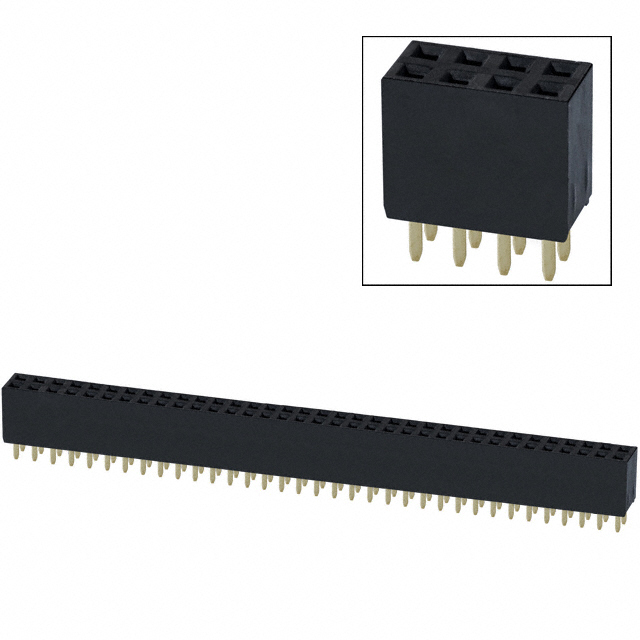

CONN HDR 70POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Insulation Material | Contact Shape | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Fastening Type | Number of Positions Loaded | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Finish Thickness - Mating | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Material Flammability Rating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Connector Type | Voltage Rating | Number of Rows [custom] | Contact Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Polyester | Square | Phosphor Bronze | 0.126 " | 3.2 mm | Solder | Push-Pull | All | 0.335 " | 8.51 mm | 3 A | Flash | Black | -40 C | 105 ░C | Through Hole | 0.1 in | 2.54 mm | UL94 V-0 | Gold | 0.1 " | 2.54 mm | Header | 250 V | 2 | Female Socket | Gold | 70 |
