RSCA201 Series

Rocker Switches 1-pole, OFF - None - ON, 15A/20A 250VAC/125VAC 3/4 HP, Non-Illuminated Matte Black with Visi-Red Visi-Rocker Switch with .250 Tab (Q.C.)

Manufacturer: Carling Technologies

Catalog

Rocker Switches 1-pole, OFF - None - ON, 15A/20A 250VAC/125VAC 3/4 HP, Non-Illuminated Matte Black with Visi-Red Visi-Rocker Switch with .250 Tab (Q.C.)

Part	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Actuator Marking	Voltage Rating - AC	Electrical Life	Color - Actuator/Cap	Switch Function	Circuit	Approval Agency
Carling Technologies RSCA201-VB-B-9-W	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	O -	125 V	100000 Cycles	Black White	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-VB-B-0-V	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	No Marking	125 V	100000 Cycles	Black Red	On-Off	SPST	CSA UL VDE

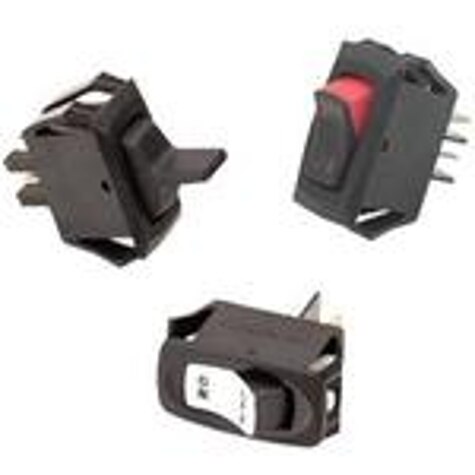

Carling Technologies RSCA201-RB-B-F-N	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	OFF O I ON Vertical	125 V	100000 Cycles	Black	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-VB-B-B-V	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	Horizontal ON OFF	125 V	100000 Cycles	Black Red	On-Off	SPST	BEAB CSA DEMKO FIMKO NEMKO SEMKO SEV TUV UL VDE
Carling Technologies RSCA201-RW-B-E-N	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	O -	125 V	100000 Cycles	White	On-Off	SPST	CSA UL VDE

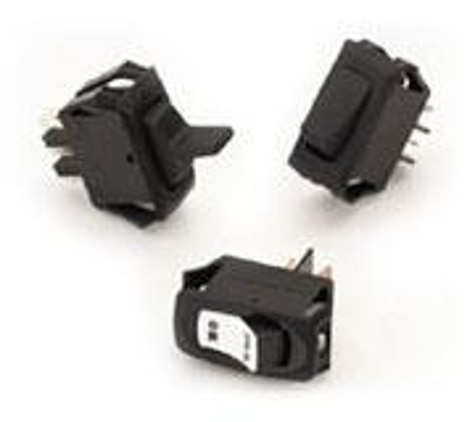

Carling Technologies RSCA201-VB-B-9-V	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	O -	125 V	100000 Cycles	Black Red	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-RB-B-B-N	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	Horizontal ON OFF	125 V	100000 Cycles	Black	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-VW-W-9-V	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	O -	125 V	100000 Cycles	Red White	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-RB-B-H-N	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	OFF O I ON Vertical	125 V	100000 Cycles	Black	On-Off	SPST	CSA UL VDE
Carling Technologies RSCA201-RB-B-A-N	Concave (Curved)	13.97 mm	28.58 mm	Panel Mount Snap-In	85 °C	20 A	Quick Connect - 0.250" (6.3mm)	OFF ON Vertical	125 V	100000 Cycles	Black	On-Off	SPST	CSA UL VDE
