1747067 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

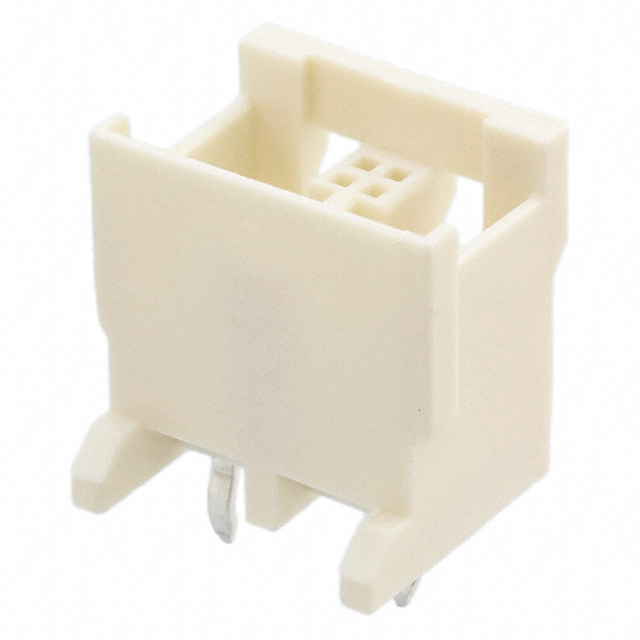

GRACE INERTIA CONN 2.5 HDR ASSY
| Part | Style | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Voltage Rating | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish - Post | Number of Rows | Contact Type | Number of Positions Loaded | Material Flammability Rating | Fastening Type | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Connector Type | Insulation Height | Insulation Height | Insulation Material | Contact Material | Shrouding | Current Rating (Amps) | Number of Positions | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Through Hole | Kinked Pin Solder | -40 °C | 105 ░C | Rectangular | 50 VAC | 2.5 mm | 0.098 in | Natural | Tin | 1 | Tab | All | UL94 V-0 | Detent Lock | 0.118 in | 3 mm | Gold | Header | 11.3 mm | 0.445 in | Polyamide (PA66) Nylon 6/6 Glass Filled | Brass | Shrouded - 4 Wall | ||||
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Through Hole | Kinked Pin Solder | -30 ░C | 105 ░C | Rectangular | 50 V | 2.5 mm | 0.098 in | Natural | Tin | 1 | Tab | All | UL94 V-0 | Latch Holder | 0.118 in | 3 mm | Gold | Header | 11.3 mm | 0.445 in | Polyamide (PA66) Nylon 6/6 Glass Filled | Brass | Shrouded - 4 Wall | Varies by Wire Gauge | 2 | Board Guide | General Purpose Industrial |
