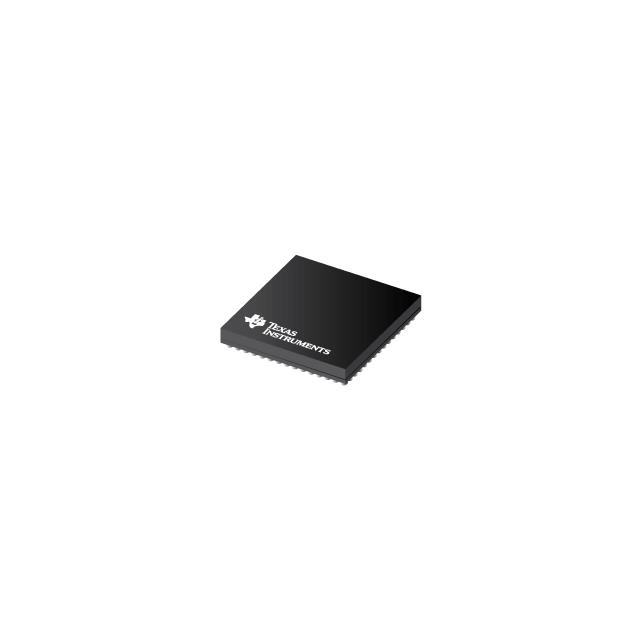

DLPC6540 Series
DLP® display controller for DLP471TP (0.47 4K UHD) DMD
Manufacturer: Texas Instruments
Catalog
DLP® display controller for DLP471TP (0.47 4K UHD) DMD
Key Features
• DLPC6540 controller using the DLP471TP digital micromirror device (DMD) supportsUp to 4K UHD at 60 HzUp to 1080p at 240 Hz (2D) and 120 Hz (3D)Provides single V-by-One HS video input port with one, two, four, or eight lanesUp to 600-MHz pixel clock supportUp to 3.0-Gbps input transmission rateInput formats supportedRGB, YCbCr, and ICtCp4:4:4, 4:2:2, 4:2:0Internal Arm CortexR4F processor with FPU88 configurable GPIOsProgrammable PWM generatorProgrammable capture and delay timersUSB 2.0 high-speed OTG controllerSPI primary/secondary controllersI2C primary/secondary controllersUART and interrupt controllersWarping engineImproved 1D, 2D, and 3D keystone correctionOptical distortion correction (radial and lateral color distortion; for example,for short throw)Warping (multipoint manual warp and full warp map access 62× 32 points)Blending (manual blending and full blending map access 63× 32 points)Additional image processingDynamicBlackTI DLP BrilliantColor™ TechnologyHDR10 (PQ and HLG) supportFrame rate conversionColor coordinate adjustmentWhite color temperature adjustmentProgrammable degammaSpatial-temporal multiplexingIntegrated support for 3-D displaySplash screen display and captureIntegrated 2G-bit frame memory eliminates need for external high-speed memoryExternal memory supportParallel flash for µP and PWM sequencesSecondary flash for splash capture, warpingSystem controlDMD power and reset driver controlDMD horizontal and vertical image flipJTAG boundary scan test supportDLPC6540 controller using the DLP471TP digital micromirror device (DMD) supportsUp to 4K UHD at 60 HzUp to 1080p at 240 Hz (2D) and 120 Hz (3D)Provides single V-by-One HS video input port with one, two, four, or eight lanesUp to 600-MHz pixel clock supportUp to 3.0-Gbps input transmission rateInput formats supportedRGB, YCbCr, and ICtCp4:4:4, 4:2:2, 4:2:0Internal Arm CortexR4F processor with FPU88 configurable GPIOsProgrammable PWM generatorProgrammable capture and delay timersUSB 2.0 high-speed OTG controllerSPI primary/secondary controllersI2C primary/secondary controllersUART and interrupt controllersWarping engineImproved 1D, 2D, and 3D keystone correctionOptical distortion correction (radial and lateral color distortion; for example,for short throw)Warping (multipoint manual warp and full warp map access 62× 32 points)Blending (manual blending and full blending map access 63× 32 points)Additional image processingDynamicBlackTI DLP BrilliantColor™ TechnologyHDR10 (PQ and HLG) supportFrame rate conversionColor coordinate adjustmentWhite color temperature adjustmentProgrammable degammaSpatial-temporal multiplexingIntegrated support for 3-D displaySplash screen display and captureIntegrated 2G-bit frame memory eliminates need for external high-speed memoryExternal memory supportParallel flash for µP and PWM sequencesSecondary flash for splash capture, warpingSystem controlDMD power and reset driver controlDMD horizontal and vertical image flipJTAG boundary scan test support
Description
AI
The DLPC6540 is a digital display controller for the TI DLP Products 4K UHD display chipset. The DLPC6540 display controller, together with theDLP471TPdigital micromirror device (DMD) and theDLPA3005power management IC (PMIC) comprise the chipset. This solution is fit for display systems that require high resolution and high brightness in a small form factor. To ensure reliable operation, the DLPC6540 display controller must always be used with the DLP471TP DMD and the DLPA3005 power management integrated circuit per application.
The DLPC6540 is a digital display controller for the TI DLP Products 4K UHD display chipset. The DLPC6540 display controller, together with theDLP471TPdigital micromirror device (DMD) and theDLPA3005power management IC (PMIC) comprise the chipset. This solution is fit for display systems that require high resolution and high brightness in a small form factor. To ensure reliable operation, the DLPC6540 display controller must always be used with the DLP471TP DMD and the DLPA3005 power management integrated circuit per application.
