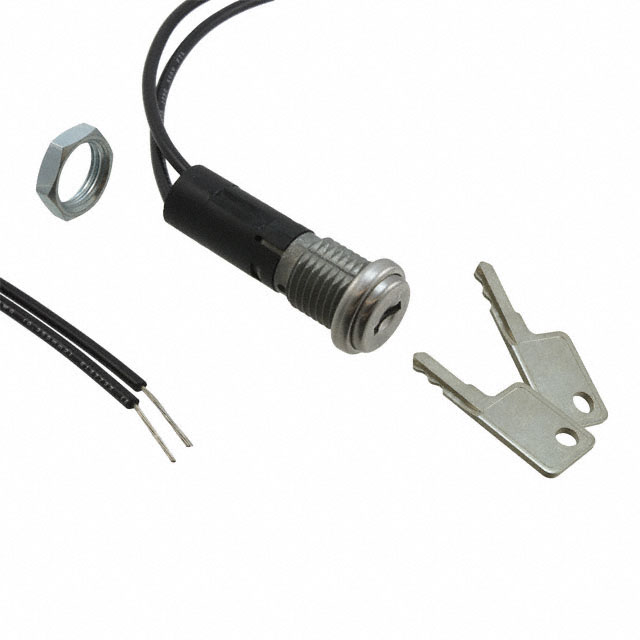

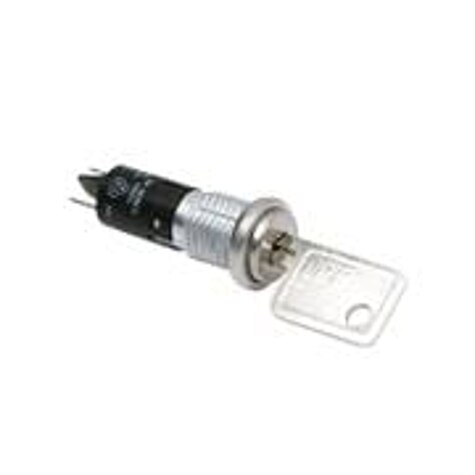

4 Tumbler Miniature Switchlock
4 Tumbler Miniature Switchlock
| Part | Depth Behind Flange [z] | Electrical Life | Current Rating (Amps) | Contact Material | Angle of Throw | Switch Function | Contact Timing | Key Removable Positions | Mounting Type | Voltage Rating - DC | Number of Positions | Contact Finish | Panel Cutout Dimensions [diameter] | Actuator Type | Voltage Rating - AC | Termination Style | Circuit | Depth Behind Flange | Key Removable Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 27.07 mm | 10000 Cycles | 0.4 VA | Copper | 90 ° | Off-On | Not Specified | 1 | Panel Mount | 20 V | 2 | Gold | 11.99 mm | Flat Key | 20 V | Wire Leads | SPST | ||
 LITTELFUSE | 27.07 mm | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | 1 | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Wire Leads | SPST | ||
 LITTELFUSE | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Solder Lug | SPST | 33.93 mm | All | ||
 LITTELFUSE | 27.07 mm | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Wire Leads | SPST | All | ||
LITTELFUSE | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Quick Connect - 0.110" (2.8mm) | SPST | 33.93 mm | All | ||
LITTELFUSE | 27.07 mm | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Wire Leads | SPST | All | ||
LITTELFUSE | 4 A | Copper | 90 ° | Off-On | Not Specified | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Wire Leads | SPST | All | ||||
LITTELFUSE | 27.07 mm | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | 1 | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Wire Leads | SPST | ||
LITTELFUSE | 10000 Cycles | 4 A | Copper | 90 ° | Off-On | Not Specified | 1 | Panel Mount | 28 V | 2 | Silver | 11.99 mm | Flat Key | 125 V | Quick Connect - 0.110" (2.8mm) | SPST | 33.93 mm | ||
LITTELFUSE | 27.07 mm | 10000 Cycles | 0.4 VA | Copper | 90 ° | Off-On | Not Specified | 1 | Panel Mount | 20 V | 2 | Gold | 11.99 mm | Flat Key | 20 V | Wire Leads | SPST |
