1337422 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

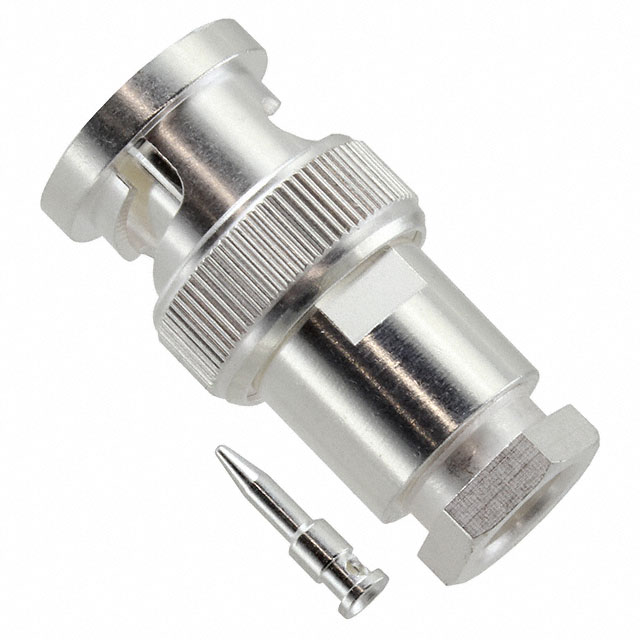

CONN BNC PLUG STR 75 OHM SOLDER
| Part | Body Finish | Body Material | Includes | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Mating Cycles | Voltage Rating | Dielectric Material | Impedance | Connector Style | Cable Group | Mounting Type | Number of Ports | Contact Termination | Center Contact Material | Fastening Type | Housing Color | Connector Type | Frequency - Max [Max] | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver | Brass | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer | 0.2 dB | -65 ░C | 165 °C | Silver | 500 | 500 V | Polytetrafluoroethylene (PTFE) | 75 Ohms | BNC | 140 210 62A RG-59B | Free Hanging (In-Line) | 1 | Solder | Brass | Bayonet Lock | Silver | Plug Male Pin | 2 GHz | Clamp |
