LCC600 Series
Manufacturer: Panduit Corp
Beta
⌘K

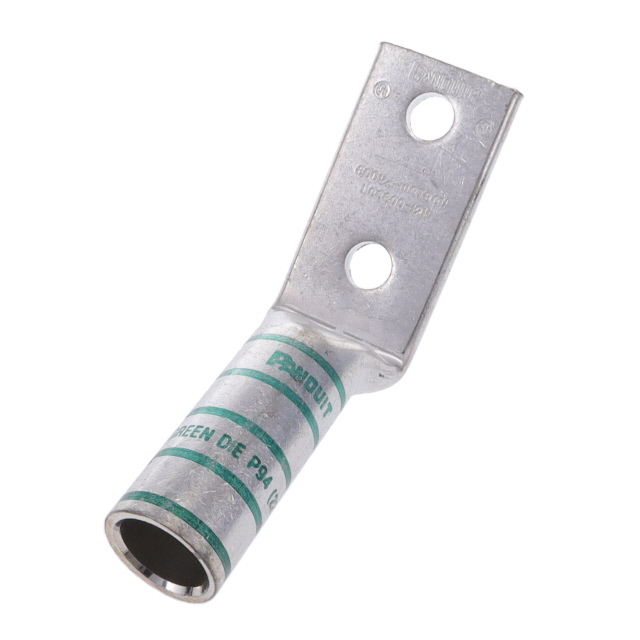

CONN TERM RECT TONG 600 MCM #1/2
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Mounting Type | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Tab Thickness | Tab Thickness | Insulation | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Stud/Tab Size | Terminal Type | Wire Gauge | Color | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.53 in | 13.46 mm | 45° Angle Free Hanging (In-Line) | 0.92 in | 23.37 mm | Electro-Tin | 1.7 in | 43.18 mm | Barrel Crimp | 6.6 mm | 0.26 in | Non-Insulated | 1.19 in | 30.23 mm | Copper | 1/2 Stud | Rectangular Tongue | 600 MCM (kcmil) | Green | Two Stud Holes |
