Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.80µm Gold (Au) Selective, 8 Circuits
Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.80µm Gold (Au) Selective, 8 Circuits
Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.80µm Gold (Au) Selective, 8 Circuits
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Contact Shape | Mounting Type | Contact Length - Post | Contact Length - Post | Termination | Insulation Color | Features | Contact Material | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Mating | Number of Positions Loaded | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Fastening Type | Material Flammability Rating | Voltage Rating | Connector Type | Style | Number of Positions | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

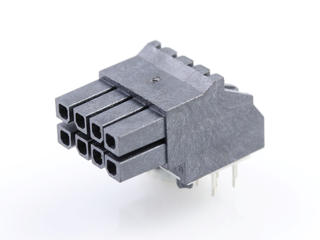

 Molex | -40 °C | 105 ░C | General Purpose Telecommunications | Square | Through Hole Right Angle | 3.94 mm | 0.155 " | Solder | Black | Blind Mating Board Guide | Phosphor Bronze Alloy | Tin | 2.54 µm | 100 µin | 3 mm | 0.118 in | Gold | All | Varies by Wire Gauge | 3 µin | 0.076 µm | 0.118 in | 3 mm | Push-Pull | UL94 V-0 | 600 VAC | Receptacle | Board to Board Cable | 8 | Female Socket | 2 |

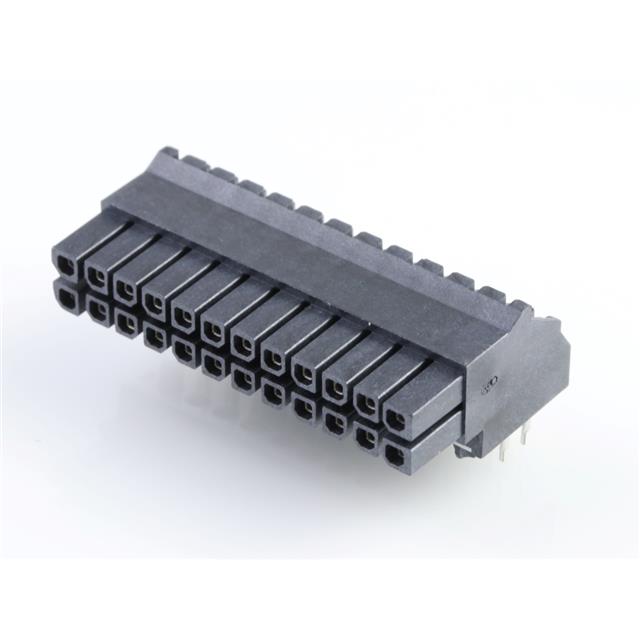

 Molex | -40 °C | 105 ░C | General Purpose Telecommunications | Square | Through Hole Right Angle | 3.94 mm | 0.155 " | Solder | Black | Blind Mating Board Guide | Phosphor Bronze Alloy | Tin | 2.54 µm | 100 µin | 3 mm | 0.118 in | Gold | All | Varies by Wire Gauge | 15 µin | 0.38 µm | 0.118 in | 3 mm | Push-Pull | UL94 V-0 | 600 VAC | Receptacle | Board to Board Cable | 24 | Female Socket | 2 |

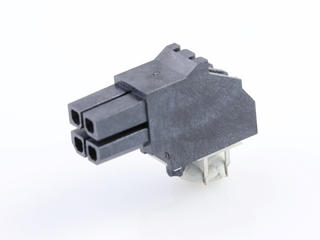

 Molex | -40 °C | 105 ░C | General Purpose Telecommunications | Square | Through Hole Right Angle | 3.94 mm | 0.155 " | Solder | Black | Blind Mating Board Guide | Phosphor Bronze Alloy | Tin | 2.54 µm | 100 µin | 3 mm | 0.118 in | Gold | All | Varies by Wire Gauge | 3 µin | 0.076 µm | 0.118 in | 3 mm | Push-Pull | UL94 V-0 | 600 VAC | Receptacle | Board to Board Cable | 4 | Female Socket | 2 |

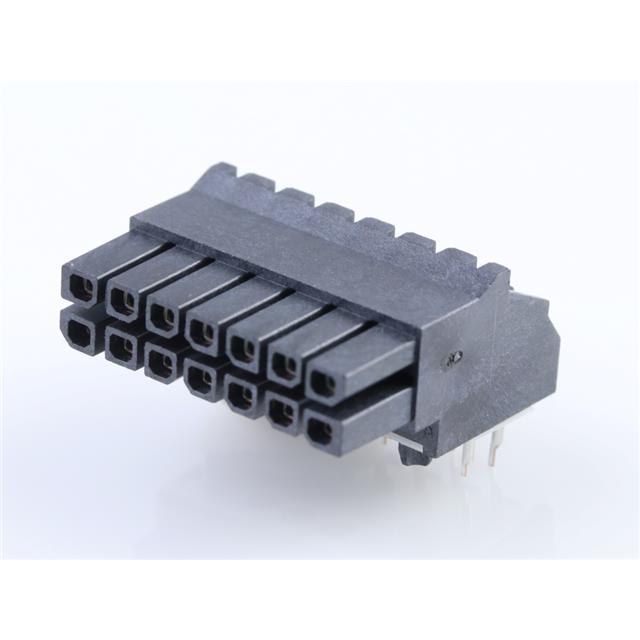

 Molex | -40 °C | 105 ░C | General Purpose Telecommunications | Square | Through Hole Right Angle | 3.94 mm | 0.155 " | Solder | Black | Blind Mating Board Guide | Phosphor Bronze Alloy | Tin | 2.54 µm | 100 µin | 3 mm | 0.118 in | Gold | All | Varies by Wire Gauge | 3 µin | 0.076 µm | 0.118 in | 3 mm | Push-Pull | UL94 V-0 | 600 VAC | Receptacle | Board to Board Cable | 14 | Female Socket | 2 |
