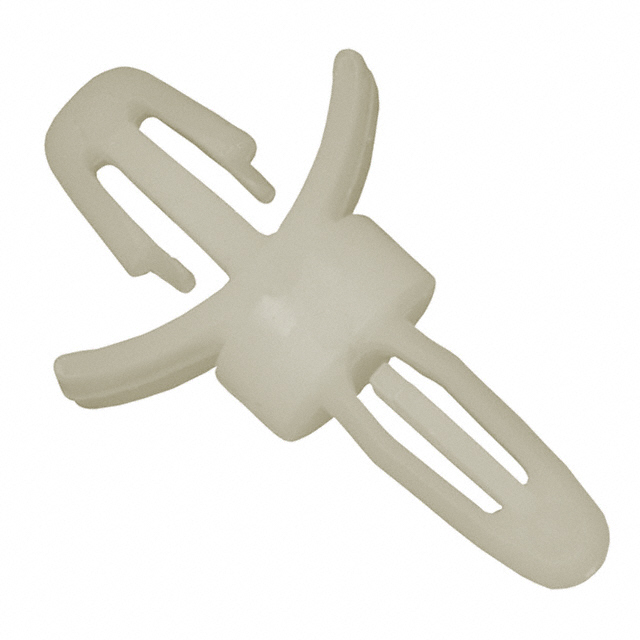

LCBS-3 Series
Manufacturer: Essentra Components
Beta
⌘K
PCB SPACER SUPPORT, NYLON 6.6, 4.8MM
| Part | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Max] | Material | Length - Overall [x] | Length - Overall [x] | Mounting Type | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Features | Between Board Height | Between Board Height | Holding Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.79 mm | 0.031 in | 0.078 " | 1.98 mm | Nylon | 23.4 mm | 0.921 in | Snap Lock | 3.99 mm | 0.157 " | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | Winged | 0.1875 in | 0.188 in | Snap Lock |
