TMC6300 Series

Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Part	Supplied Contents	Function	Type	Primary Attributes	Contents	Utilized IC / Part	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Motor Type - AC, DC	Motor Type - Stepper	Output Configuration	Applications	Mounting Type	Current - Output	Technology	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Analog Devices Inc./Maxim Integrated TMC6300-EVAL	Board(s)	Motor Controller/Driver	Power Management	Motors (BLDC PMSM)	Board(s)	TMC6300
Analog Devices Inc./Maxim Integrated TMC6300-LA		Driver - Fully Integrated Control and Power Stage					11 V	2 V	5.25 V	2 V 2.2 V	20-QFN (3x3)	Brushless DC (BLDC)	Multiphase	Half Bridge (3)	General Purpose	Surface Mount	2 A	Power MOSFET	20-VFQFN Exposed Pad	-40 C	125 °C

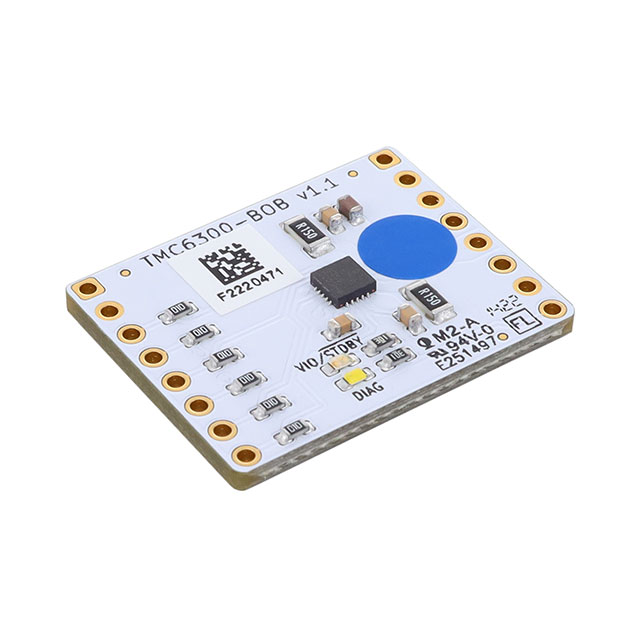

Analog Devices Inc./Maxim Integrated TMC6300-BOB	Board(s)	Motor Controller/Driver	Power Management	Motors (BLDC PMSM)	Board(s)	TMC6300
Analog Devices Inc./Maxim Integrated TMC6300-LA-T											20-QFN (3x3)					Surface Mount			20-VFQFN Exposed Pad

Catalog

Highly Efficient Low Voltage, Zero Standby Current Driver for 3-Phase BLDC/PMSM Motors up to 2A peak, Triple Half-Bridge with separate HS and LS control signals

Description

Working from a single Li-Ion cell or dual AA batteries the TMC6300 is optimally suited for battery operated equipment. Operate a BLDC motor with block or sinecommutation using 6-line control from a CPU. Integrated power-MOSFETs handle motor current up to 2A. Protection and diagnostic features support robust and reliable operation. Its integrated chargepump for best-in-class RDSon and ultra-low standby current ensure best efficiency even at low supply voltage and longest battery life.
