225550 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

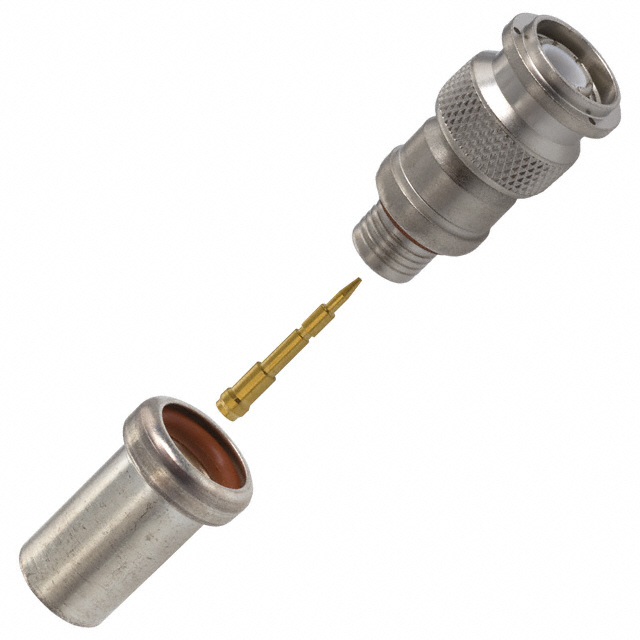

TNC PLUG DUAL W/P

Part	Connector Type	Housing Color	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Connector Style	Body Finish	Center Contact Plating	Body Material	Center Contact Material	Mounting Type	Frequency - Max [Max]	Impedance	Voltage Rating	Includes	Shield Termination	Ingress Protection	Dielectric Material	Number of Ports	Mating Cycles	Cable Group
TE Connectivity Aerospace, Defense and Marine 225550-2	Male Pin Plug	Silver	Crimp	-65 ░C	165 °C	58C RG-58A	TNC	Silver	Gold	Phosphor Bronze	Phosphor Bronze	Free Hanging (In-Line)	11 GHz	50 Ohms	500 V	1 Connector 1 Contact 1 Ferrule	Crimp	Weatherproof	Polytetrafluoroethylene (PTFE)	1
TE Connectivity Aerospace, Defense and Marine 225550-1	Male Pin Plug	Silver	Crimp	-65 ░C	165 °C	RG-55A	TNC	Silver	Gold	Phosphor Bronze	Brass	Free Hanging (In-Line)	11 GHz	50 Ohms	500 V	1 Connector 1 Contact 1 Ferrule	Crimp	Weatherproof	Polytetrafluoroethylene (PTFE)	1	500	223
TE Connectivity Aerospace, Defense and Marine 7-225550-8	Male Pin Plug	Silver	Crimp	-65 ░C	165 °C		TNC	Silver	Gold	Phosphor Bronze	Phosphor Bronze	Free Hanging (In-Line)	11 GHz	50 Ohms	500 V	1 Connector 1 Contact 1 Ferrule	Crimp	Weatherproof	Polytetrafluoroethylene (PTFE)	1	500
TE Connectivity Aerospace, Defense and Marine 1-225550-3	Male Pin Plug	Silver	Crimp	-65 ░C	165 °C	RG-393	TNC	Silver	Gold	Phosphor Bronze	Phosphor Bronze	Free Hanging (In-Line)	11 GHz	50 Ohms	500 V	1 Connector 1 Contact 1 Ferrule	Crimp	Weatherproof	Polytetrafluoroethylene (PTFE)	1	500
TE Connectivity Aerospace, Defense and Marine 1-225550-8	Male Pin Plug	Silver	Crimp	-65 ░C	165 °C	Microdot 250-4172 Microdot 250-4208	TNC	Silver	Gold	Phosphor Bronze		Free Hanging (In-Line)	11 GHz	50 Ohms	500 V	1 Connector 1 Contact 1 Ferrule	Crimp	Weatherproof	Polytetrafluoroethylene (PTFE)	1	500
