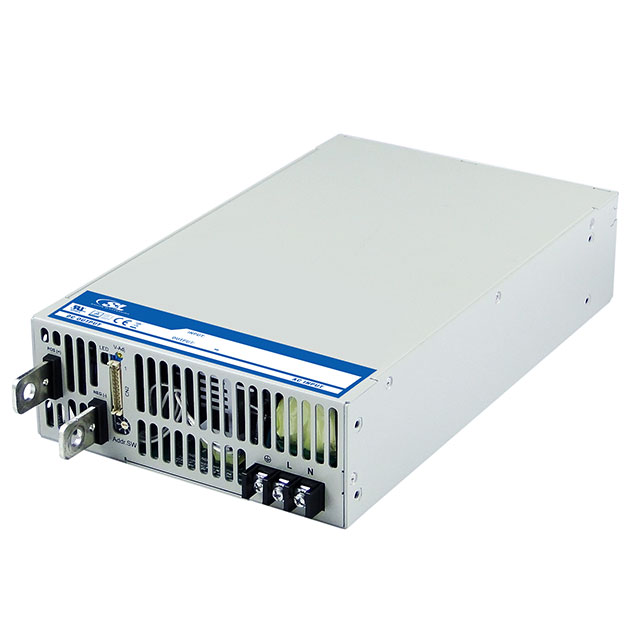

TF3000 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 15V 2400W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output 1 | Current - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | Voltage - Isolation | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Type | Features | Approval Agency | Efficiency | Mounting Type | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 60 °C | -25 °C | 2400 W | 15 V | 160 A | 6.69 in | 64 mm | 170 mm | 11.02 in | 2.52 in | 279.9 mm | ITE (Commercial) | 3000 V | 1 | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | CE cURus TUV | 89 % | Chassis Mount | |
SL POWER / Advanced Energy | 60 °C | -25 °C | 3000 W | 48 V | 62.5 A | 6.69 in | 64 mm | 170 mm | 11.02 in | 2.52 in | 279.9 mm | ITE (Commercial) | 3000 V | 1 | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | CE cURus TUV | 92 % | Chassis Mount | |
SL POWER / Advanced Energy | 60 °C | -25 °C | 3000 W | 50 A | 6.69 in | 64 mm | 170 mm | 11.02 in | 2.52 in | 279.9 mm | ITE (Commercial) | 3000 V | 1 | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | CE cURus TUV | 93 % | Chassis Mount | 60 V | |
 SL POWER / Advanced Energy | 60 °C | -25 °C | 2400 W | 12 V | 200 A | 6.69 in | 64 mm | 170 mm | 11.02 in | 2.52 in | 279.9 mm | ITE (Commercial) | 3000 V | 1 | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | CE cURus TUV | 88 % | Chassis Mount | |
SL POWER / Advanced Energy | 60 °C | -25 °C | 3000 W | 24 V | 125 A | 6.69 in | 64 mm | 170 mm | 11.02 in | 2.52 in | 279.9 mm | ITE (Commercial) | 3000 V | 1 | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | CE cURus TUV | 91 % | Chassis Mount |
