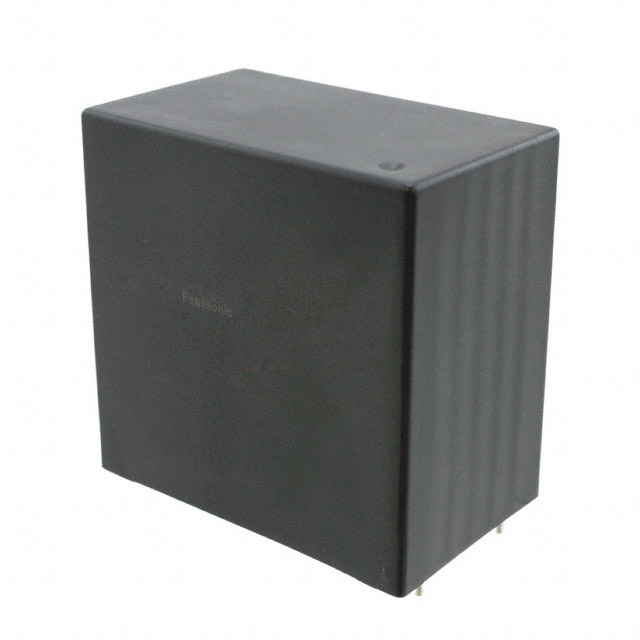

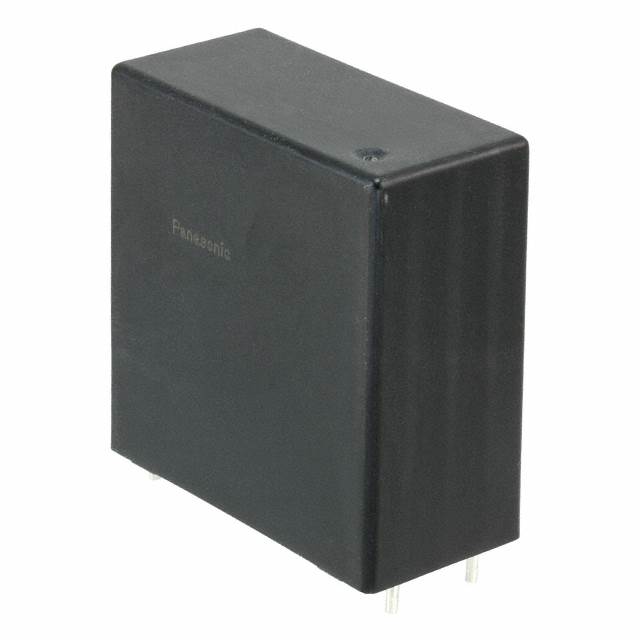

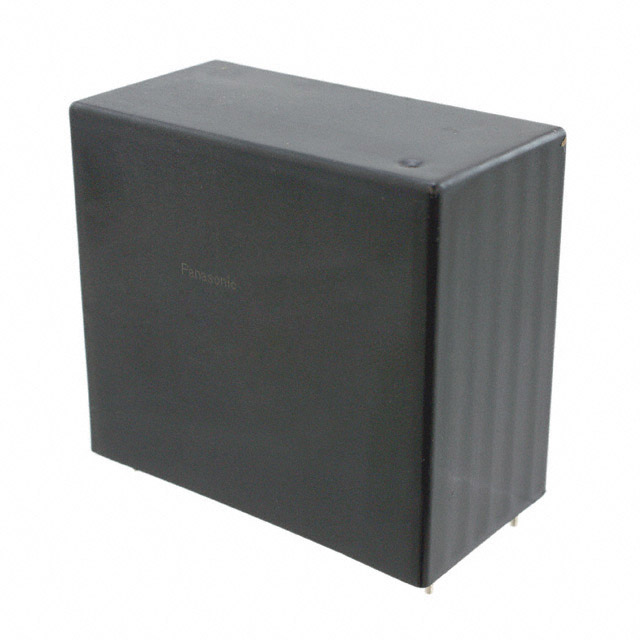

EZP-E1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 40UF 10% 1.1KVDC RADIAL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Features	Termination	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EZP-E1B406MTA	85 °C	-40 °C	37.5 mm	1.476 in	6.5 mOhms	Low ESR	PC Pins	40 µF	1100 V	1.1 kV	35 mm	1.378 "	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole	56.5 mm	2.224 in	10 %	Radial - 4 Leads
Panasonic Industrial Automation Sales EZP-E1B156MTA	85 °C	-40 °C	37.5 mm	1.476 in	8.2 mOhms	Low ESR	PC Pins	15 µF	1100 V	1.1 kV	30 mm	1.181 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.039 in	51.8 mm
Panasonic Industrial Automation Sales EZP-E1B356MTA	85 °C	-40 °C	52.5 mm	2.067 in	7.2 mOhms	Low ESR	PC Pins	35 µF	1100 V	1.1 kV	35 mm	1.378 "	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.244 "	57 mm
Panasonic Industrial Automation Sales EZP-E1D106MTA	85 °C	-40 °C	37.5 mm	1.476 in	10 mOhm	Low ESR	PC Pins	10 µF	1300 V	1.3 kV	30 mm	1.181 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.028 "	51.5 mm
Panasonic Industrial Automation Sales EZP-E1B106MTA	85 °C	-40 °C	37.5 mm	1.476 in	12.3 mOhms	Low ESR	PC Pins	10 µF	1100 V	1.1 kV	20 mm	0.787 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole	42 mm	1.654 in	10 %	Radial - 4 Leads

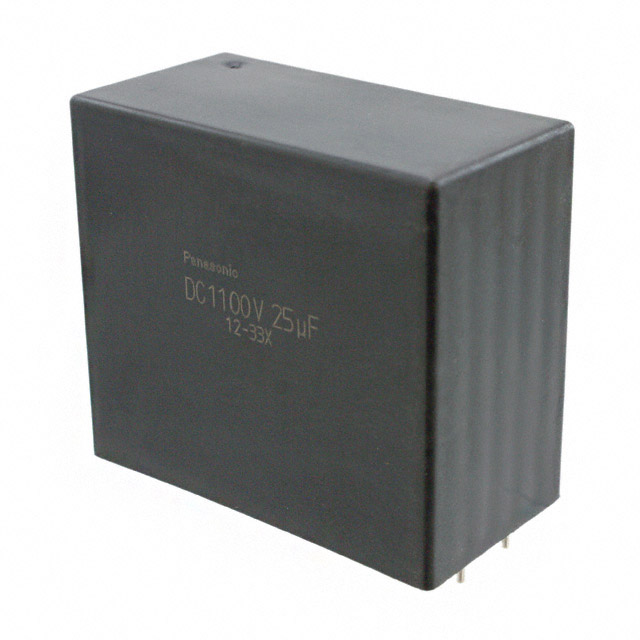

Panasonic Industrial Automation Sales EZP-E1B256MTA	85 °C	-40 °C	52.5 mm	2.067 in	10.7 mOhms	Low ESR	PC Pins	25 µF	1100 V	1.1 kV	30 mm	1.181 in	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.039 in	51.8 mm
Panasonic Industrial Automation Sales EZP-E1B306MTA	85 °C	-40 °C	52.5 mm	2.067 in	8.5 mOhms	Low ESR	PC Pins	30 µF	1100 V	1.1 kV	30 mm	1.181 in	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.039 in	51.8 mm
Panasonic Industrial Automation Sales EZP-E1D156MTA	85 °C	-40 °C	52.5 mm	2.067 in	14.5 mOhms	Low ESR	PC Pins	15 µF	1300 V	1.3 kV	30 mm	1.181 in	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.028 "	51.5 mm
Panasonic Industrial Automation Sales EZP-E1D206MTA	85 °C	-40 °C	52.5 mm	2.067 in	11.1 mOhms	Low ESR	PC Pins	20 µF	1300 V	1.3 kV	35 mm	1.378 "	2.264 in	57.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.244 "	57 mm
Panasonic Industrial Automation Sales EZP-E1B206MTA	85 °C	-40 °C	37.5 mm	1.476 in	6.3 mOhms	Low ESR	PC Pins	20 µF	1100 V	1.1 kV	30 mm	1.181 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	DC Filtering DC Link	Through Hole			10 %	Radial - 4 Leads	2.039 in	51.8 mm
