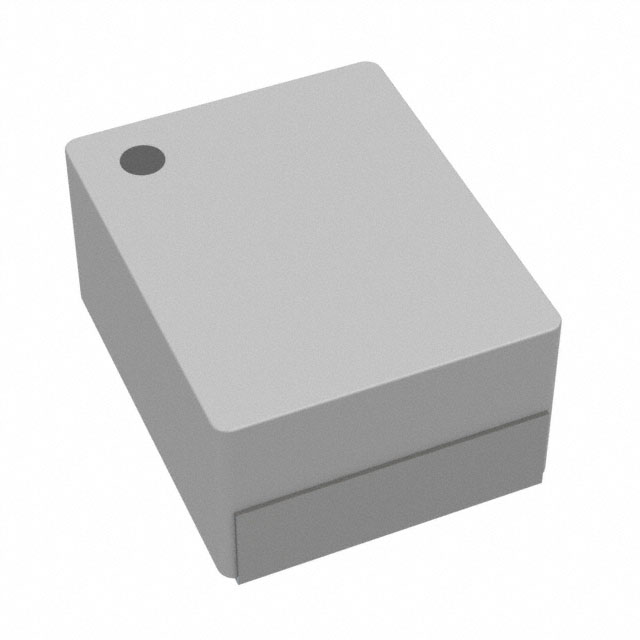

HMLB25201 Series

Catalog

FIXED IND 1UH 3.4A 55 MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Package / Case	Package / Case	Current Rating (Amps)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Inductance	Mounting Type	Material - Core	Current - Saturation (Isat)	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Delta Electronics/Cyntec HMLB25201T-1R0MSR	0.039 in	1 mm	1 MHz	2520 Metric	1008	3.4 A	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	-55 C	125 °C	55 mOhm	1 µH	Surface Mount	Metal	3.35 A
Delta Electronics/Cyntec HMLB25201T-2R2MSR	0.039 in	1 mm	1 MHz	2520 Metric	1008	1.9 A	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	-55 C	125 °C		2.2 µH	Surface Mount	Metal	2.35 A	112 mOhm
Delta Electronics/Cyntec HMLB25201B-1R0MSR			1 MHz	2520 Metric	1008	3.1 A	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	-55 C	125 °C	48 mOhm	1 µH	Surface Mount	Metal	3.5 A		1.2 mm	0.047 "
Delta Electronics/Cyntec HMLB25201B-R47MSR			1 MHz	2520 Metric	1008	4.5 A	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	-55 C	125 °C	26 mOhm	470 nH	Surface Mount	Metal			1.2 mm	0.047 "
Delta Electronics/Cyntec HMLB25201T-R47MSR	0.039 in	1 mm	1 MHz	2520 Metric	1008	3.95 A	1008	2.5 mm	0.079 in	0.098 in	2 mm	Shielded	20 %	-55 C	125 °C		470 nH	Surface Mount	Metal	4.15 A	32 mOhm
