PR20204VB Series

Catalog

PIN HEADER, THR, DUAL ROW, .100"

Part	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Contact Material	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Shrouding	Number of Rows [custom]	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions Loaded	Number of Rows

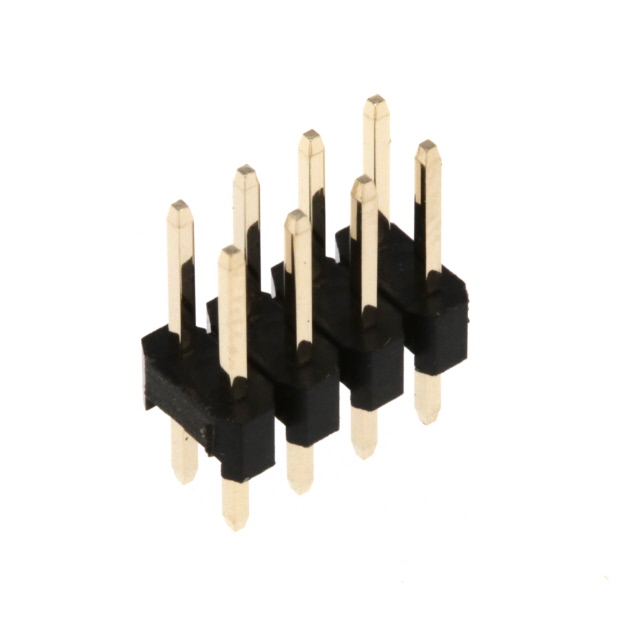

METZ CONNECT USA Inc. PR20204VBDN	0.098 "	2.5 mm	Polyethylene	0.1 "	2.54 mm	Male Pin	Black	Copper Zinc	Header	Push-Pull	Flash	-40 C	105 ░C	Solder	Through Hole	Square	0.1 in	2.54 mm	Gold	Unshrouded	2	8	0.24 in	6.1 mm	0.118 in	3 mm	11.61 mm	0.457 in	All

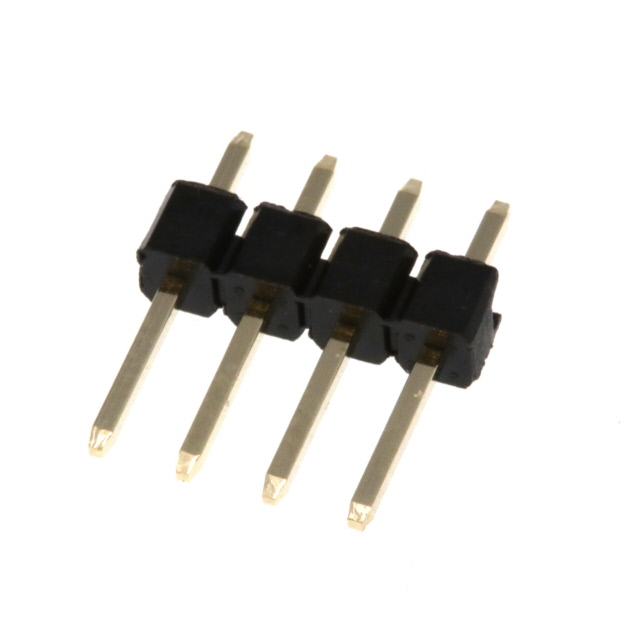

METZ CONNECT USA Inc. PR20204VBNN	0.098 "	2.5 mm	Polyethylene	0.1 "	2.54 mm	Male Pin	Black	Copper Zinc	Header	Push-Pull	Flash	-40 C	105 ░C	Solder	Through Hole	Square			Gold	Unshrouded		4	0.24 in	6.1 mm	0.118 in	3 mm	11.61 mm	0.457 in	All	1
