8857-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Termination	Tail Type	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness

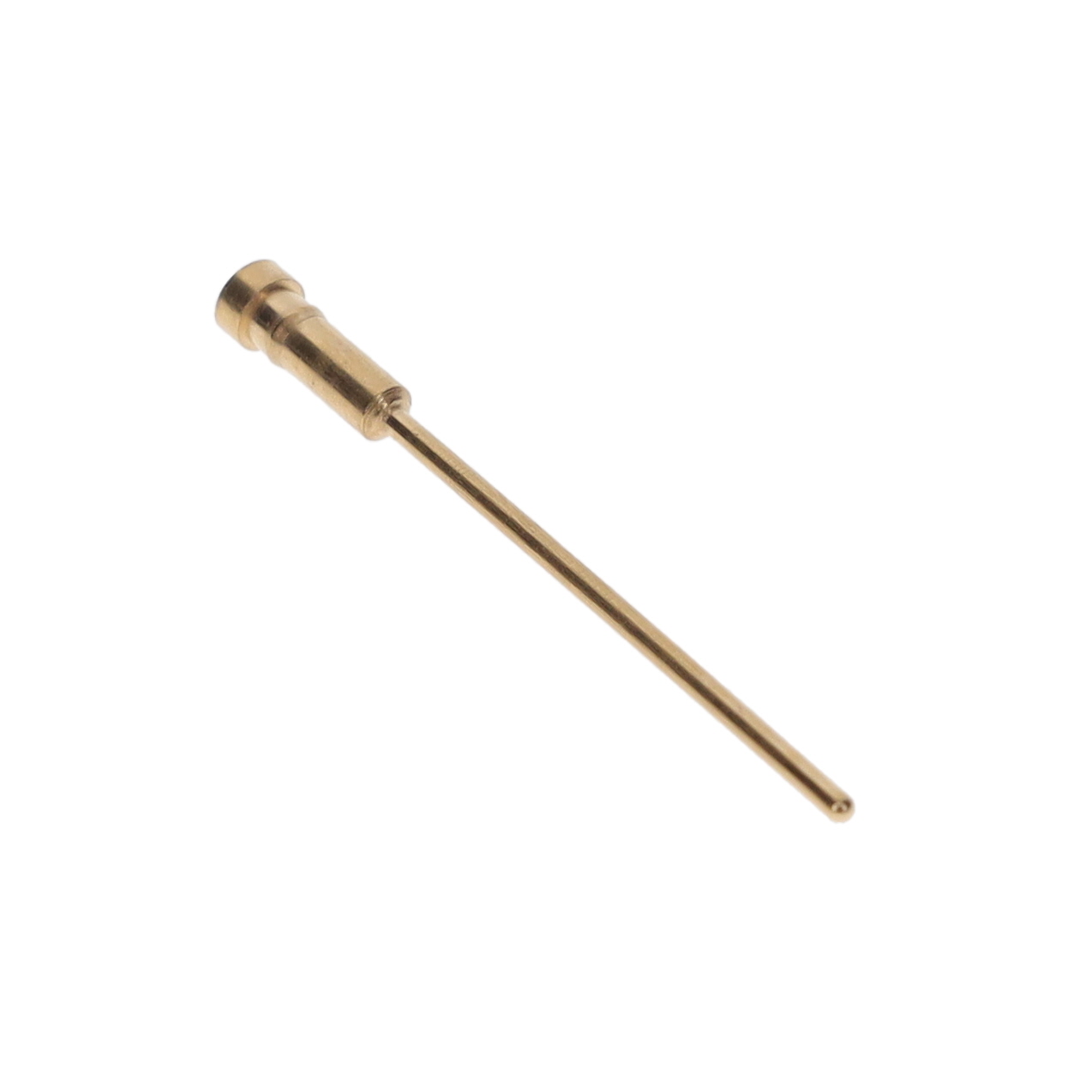

Mill-Max Manufacturing Corp. 8857-2-15-15-32-27-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Gold	1.78 mm	0.07 in	4.32 mm	0.17 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 8857-2-15-80-32-84-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Tin	1.78 mm	0.07 in	4.32 mm	0.17 in	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 8857-2-15-01-32-27-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Gold	1.78 mm	0.07 in	4.32 mm	0.17 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 8857-2-15-15-32-14-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Gold	1.78 mm	0.07 in	4.32 mm	0.17 in	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 8857-2-15-80-32-27-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Gold	1.78 mm	0.07 in	4.32 mm	0.17 in	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 8857-2-15-80-32-14-04-0	-55 C	125 °C	1.45 mm	0.057 in	0.779 in	19.79 mm	Press-Fit	Standard Tail	Beryllium Copper	0.025 in	0.64 mm	0.015 "	0.38 mm	0.66 mm	0.026 in	Gold	1.78 mm	0.07 in	4.32 mm	0.17 in	10 Áin	0.25 Ám
