7114 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

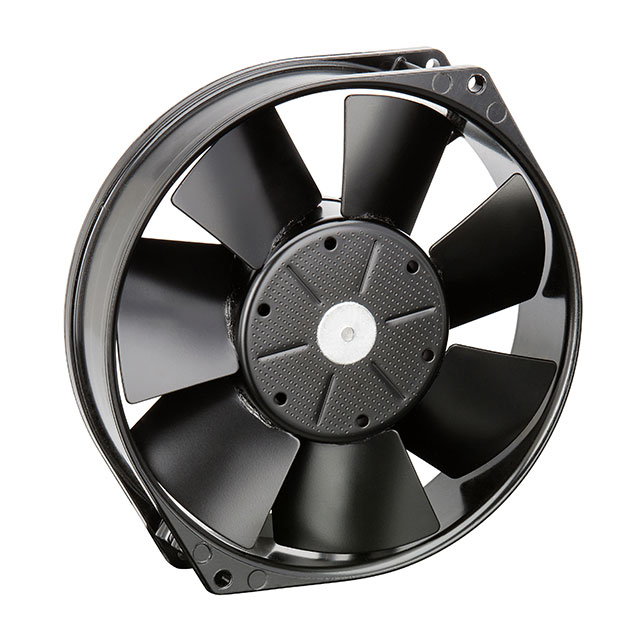

FAN AXIAL 150X38MM 24VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension | Size / Dimension [diameter] | Power (Watts) | Fan Type | Air Flow | Air Flow | Weight | Weight | RPM | Noise | Width [y] | Voltage - Rated | Termination | Bearing Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 26.5 VDC | 12 VDC | 75000 Hrs | Aluminum | CE CSA UL VDE | -25 °C | 162 °F | -25 °C | 72 °C | Round | 150 mm | 19 W | Tubeaxial | 247 CFM | 6.92 m³/min | 635 g | 1.4 lbs | 3350 RPM | 59 dB(A) | 38 mm | 24 VDC | 2 Wire Leads | Ball | |
 ebm-papst Inc. | Steel | 30 V | 12 VDC | 80000 Hrs | Aluminum | CE CSA UL VDE | -25 °C | 162 °F | -25 °C | 72 °C | Round | 150 mm | 12 W | Tubeaxial | 212 CFM | 5.94 m³/min | 635 g | 1.4 lbs | 2850 RPM | 55 dB(A) | 38 mm | 24 VDC | 2 Wire Leads | Ball | 600 mA |
