BZ-2R-P Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Voltage Rating - AC	Differential Travel	Differential Travel	Overtravel	Overtravel	Release Force	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Mechanical Life	Voltage Rating - DC	Actuator Type	Operating Position	Operating Position	Current Rating (Amps)	Circuit	Operating Force [Max]	Operating Force [Min]	Mounting Type	Switch Function

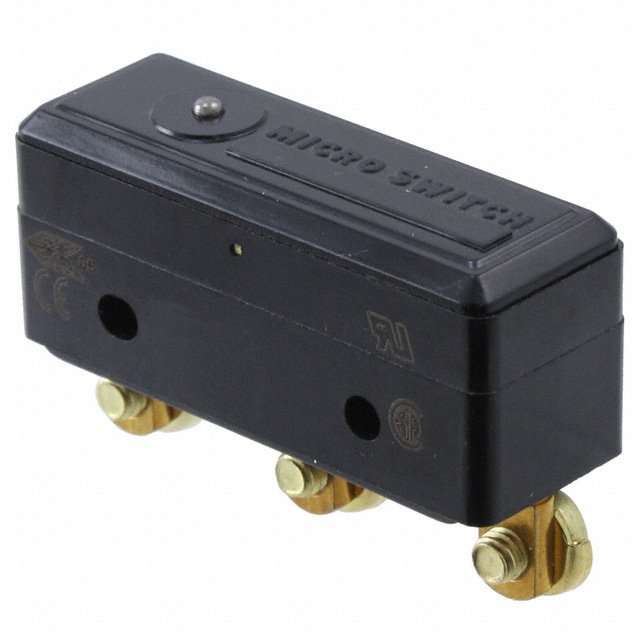

Honeywell Sensing and Productivity Solutions BZ-2R-P5	125 V	0.002 in	0.05 mm	0.13 mm	0.005 in	113 gf	Screw Terminal	85 °C	-55 °C	0.015 in	0.4 mm	20000000 Cycles	125 VDC	Round (Pin Plunger)	0.625 in	15.9 mm	15 A 500 mA	SPDT	368 gf	255 gf	Chassis Mount	On-Mom

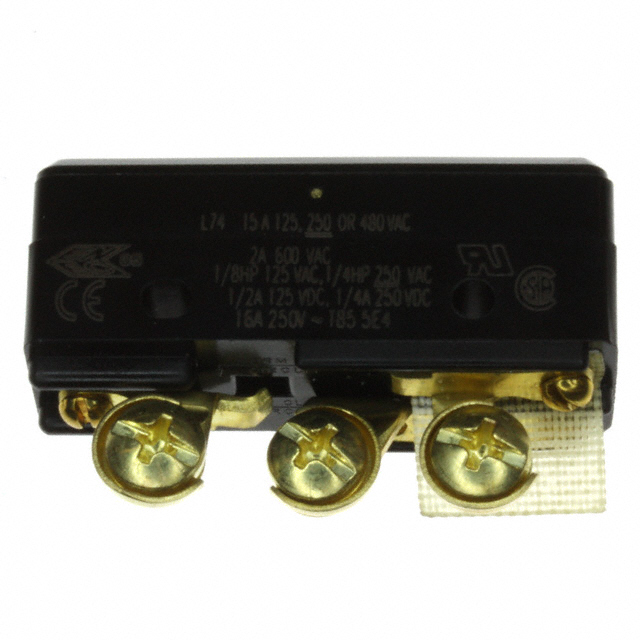

Honeywell Sensing and Productivity Solutions BZ-2R-P1	125 V	0.002 in	0.05 mm	0.13 mm	0.005 in	113 gf	Screw Terminal	85 °C	-55 °C	0.015 in	0.4 mm	20000000 Cycles	125 VDC	Round (Pin Plunger)	0.625 in	15.9 mm	15 A 500 mA	SPDT	368 gf	255 gf	Chassis Mount	On-Mom
